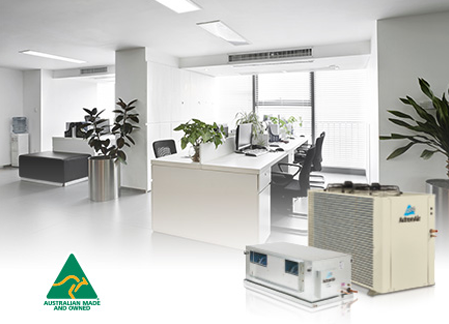

ActronAir Fixed Speed – Commercial Split Ducted Solutions
ActronAir Fixed Speed – Commercial Split Ducted Solutions
The trusted commercial solution engineered to exceed Australian Standards
Single speed motor operation that turns itself on or off when desired temperature is reached. Our Commercial Ducted air conditioning system is the perfect solution for retail and light commercial installations. That could be anything from doctor’s surgeries to restaurants to classrooms to offices. Offering robust performance, energy efficiency, installation flexibility and the levels of service ActronAir is renowned for, the Commercial Ducted range provides an overall value package that can’t be beaten in the marketplace. Single speed motor operation that turns itself on or off when desired temperature is reached. 24kW-40kW
Features Vertical Discharge | Blue fin epoxy coated indoor + outdoor coil protection | R410A refrigerant | Two-speed outdoor condenser fans | minimise outdoor noise
ActronAir Fixed Speed – Commercial Split Ducted Solutions
The trusted commercial solution engineered to exceed Australian Standards
Single speed motor operation that turns itself on or off when desired temperature is reached. Our Commercial Ducted air conditioning system is the perfect solution for retail and light commercial installations. That could be anything from doctor’s surgeries to restaurants to classrooms to offices. Offering robust performance, energy efficiency, installation flexibility and the levels of service ActronAir is renowned for, the Commercial Ducted range provides an overall value package that can’t be beaten in the marketplace. Single speed motor operation that turns itself on or off when desired temperature is reached. 24kW-40kW
Features Vertical Discharge | Blue fin epoxy coated indoor + outdoor coil protection | R410A refrigerant | Two-speed outdoor condenser fans | minimise outdoor noise
System Brochure
Commercial Ducted – 24kW – 40kW
ActronAir Fixed Speed – Commercial Split Ducted Solutions
Our Commercial Ducted air conditioning system is the perfect solution for retail and light commercial installations. That could be anything from doctor’s surgeries to restaurants to classrooms to offices. Offering robust performance, energy efficiency, installation flexibility and the levels of service ActronAir is renowned for, the Commercial Ducted range provides an overall value package that can’t be beaten in the marketplace.
| OUTDOOR MODEL | SCA260C | SCA290C | SCA330C | SCA340C | SCA400C | ||
| INDOOR MODEL | SCG260E | SCG290E | SCG330E | SCG340E | SCG400E | ||
| 1 Total (Gross) Capacity (kW) (AS/NZS3823.1.2) | Cooling (Rated) | 25.56 | 29.5 | 32.9 | 33.4 | 40.8 | |
| Heating (Rated) | 24.5 | 27.4 | 32.1 | 34.1 | 37.85 | ||
|
Nett (Rated) Capacity (kW) (AS/NZS3823.1.2)
|
Cooling | 24.71 | 28.3 | 32 | 32.5 | 39.2 | |
| Heating | 25.25 | 28.6 | 33 | 35 | 39.5 | ||
| Input Power (kW) (AS/NZS3823.1.2) | Cooling | 7.25 | 8.45 | 9.55 | 9.85 | 12.76 | |
| Heating | 7.04 | 7.97 | 9.25 | 9.94 | 11.97 | ||
|
2 EER Rated (AS/NZS3823.1.2)
3 COP Rated (AS/NZS3823.1.2) |
Cooling | 3.41 | 3.35 | 3.35 | 3.3 | 3.07 | |
| Heating | 3.59 | 3.59 | 3.57 | 3.52 | 3.3 | ||
| Power Supply (V / Ph / Hz) | Outdoor | 400 / 3Ph + N / 50Hz | |||||
| Indoor | 230 / 1Ph + N / 50Hz | ||||||
|
Rated Load Amps (AS/NZS3823.1.2) Full Load Amps (AS/NZS3823.1.2)
|
Total | 19.8 | 24.5 | 20.7 | 23.4 | 36.2 | |
| Outdoor / Indoor / Total | 18.2 / 6.8 / 25.0 | 19.5 / 11.4 / 30.9 | 22.6 / 11.6 / 34.2 | 24.3 / 11.6 / 35.9 | 31.9 /14.5 / 46.4 | ||
| 4 Circuit Breaker Amps | 32 | 32 | 40 | 40 | 50 | ||
|
IP Rating
|
Outdoor | IP44 | |||||
| Indoor | IP20 | ||||||
| Compressor | Type / No. per Unit | Scroll / 1 | Scroll / 2 | ||||
| Starting Method | D.O.L. | ||||||
| No. Refrigeration Circuits/No. Capacity Stages (Capacity range) | 1 / 1 (100%) | 2 / 2 (50, 100%) | |||||
| Refrigerant | R410A | ||||||
|
Fans (Type x Number per unit)
|
Outdoor | Axial / 6 Pole External Rotor / Direct Drive x 2 | |||||
| Indoor | Twin Deck Centrifugal / ECM Direct Drive x 1 | ||||||
|
Airflow Range Indoor (l/s)
|
Maximum | 1450 | 1650 | 1900 | 1900 | 2250 | |
| Nominal | 1320 | 1500 | 1770 | 1770 | 2050 | ||
| Minimum | 1120 | 1275 | 1450 | 1450 | 1750 | ||
|
External Static Pressure (Pa) at:
|
Maximum Airflow | 145 | 266 | 255 | 255 | 170 | |
| Nominal Airflow | 208 | 285 | 295 | 295 | 236 | ||
|
Outdoor Dimensions (mm)
|
Depth | 685 | 875 | ||||
| Height | 1105 | 1330 | 1315 | ||||
| Width | 1685 | 1875 | |||||
|
Indoor Dimensions (mm)
|
Depth | 695 | 770 | 795 | |||
| Height | 485 | 535 | 620 | 620 | 680 | ||
| Width | 1470 | 1530 | 1735 | 1735 | 1910 | ||
|
5 Nominal Weight (kgs)
|
Outdoor | 245 | 290 | 305 | 335 | 332 | |
| Indoor | 90 | 110 | 125 | 130 | 125 | ||
|
6 Sound Pressure Level (dBA)
7 Sound Power Level (dBA) |
Outdoor (low/high fan) | 54 / 58 | 55.9 / 59.9 | 57.8 / 61.8 | 57.8 / 61.8 | 61.0 / 64.0 | |
| Outdoor (low/high fan) | 71 / 75 | 72.9 / 76.9 | 74.8 / 78.8 | 74.8 / 78.8 | 78.0 / 81.0 | ||
| MEPS Compliant | Yes | Yes | Yes | Yes | Yes | ||
