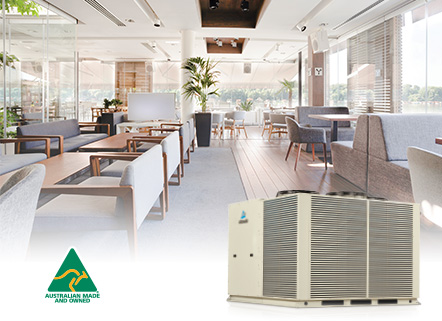

ActronAir Tri-Capacity Systems – Commercial Package Solutions
Performance and efficiencies through smart engineering – ActronAir Tri-Capacity Systems – Commercial Package Solutions
ActronAir’s unique Tri-Capacity technology is designed and engineered in-house in our Sydney headquarters specifically for Australian conditions. Ideal for medium to large sized applications such as restaurants, banks, conference spaces, two-storey offices and cinemas, our Tri-Capacity delivers demonstrable benefits in energy efficiency, performance and ease of installation.
Performance and efficiencies through smart engineering
ActronAir’s unique Tri-Capacity technology is designed and engineered in-house in our Sydney headquarters specifically for Australian conditions. Ideal for medium to large sized applications such as restaurants, banks, conference spaces, two-storey offices and cinemas, our Tri-Capacity delivers demonstrable benefits in energy efficiency, performance and ease of installation.
System Brochure
Tri-Capacity – 49kW – 60kW
ActronAir Tri-Capacity Systems – Commercial Package Solutions – Features
Vertical Discharge | High efficiency EC fan technology | Axial outdoor fan | BMS Option | In-built controls solution | Dual control capability for enhanced user access | R410A refrigerant | Filter notification output | Filter cavity with in-built filter slides | Separate run outputs | Fault notification output | Multiple Handing Options | Individual motor protection | Circuit breaker and thermal overload | DRED enabled (AS4755) | Large indoor heat exchangers | Large outdoor heat exchangers | TX valves for improved efficiency | Foil face polyethylene insulation | Two speed condenser fans | Inbuilt economy control logic
| Three Phase | ||||||||||
| PACKAGE MODEL | PKY500T | PKY620T | ||||||||
|
1 Total (Gross) Capacity (kW) (AS/NZS3823.1.2)
|
Cooling | 50.5 | 63 | |||||||
| Heating | 50.6 | 60 | ||||||||
|
Nett (Rated) Capacity (kW) (AS/NZS3823.1.2)
|
Cooling | 49.1 | 60.8 | |||||||
| Heating | 51.8 | 62.47 | ||||||||
|
Input Power (kW) (AS/NZS3823.1.2)
|
Cooling | 15.34 | 20.5 | |||||||
| Heating | 15.36 | 20.15 | ||||||||
|
2 EER Rated (AS/NZS3823.1.2)
3 COP Rated (AS/NZS3823.1.2) |
Cooling | 3.2 | 2.97 | |||||||
| Heating | 3.37 | 3.1 | ||||||||
| Power Supply (V / Ph / Hz) | 400V / 3Ph + N / 50Hz | |||||||||
|
Rated Load Amps (AS/NZS3823.1.2) Full Load Amps (AS/ NZS3823.1.2)
|
30 | 39.2 | ||||||||
| 41.7 | 53.9 | |||||||||
| 4 Circuit Breaker Amps | 50 | 63 | ||||||||
| IP Rating | IP44 | |||||||||
|
Compressor
|
Type / No. per Unit | Compliant Scroll / 2 (500-620 Models) | ||||||||
| Starting Method | D.O.L. | |||||||||
| No. Refrigeration Circuits/No. Capacity Stages (Capacity range) | 2 (500-620 Models / Tri-Capacity (~33% 66% 100% ) All Models | |||||||||
| Refrigerant | R410A | |||||||||
|
Fans (Type x Number per unit)
|
Outdoor | Axial Low Noise / 6 Pole External Rotor / Direct Drive x 3 | ||||||||
| Indoor | Variable Speed ECM Direct Drive Backward Curve Plug Fan x 1 (500-620 Models) | |||||||||
|
Airflow Range Indoor (l/s)
|
||||||||||
| Maximum | 3100 | 3900 | ||||||||
| Nominal | 2600 | 3200 | ||||||||
| Minimum | 2000 | 2500 | ||||||||
|
External Static Pressure (Pa) at:
|
Maximum Airflow | 303 | 210 | |||||||
| Nominal Airflow | 470 | 390 | ||||||||
|
Nominal Unit Dimensions (mm)
|
Depth | 2365 | ||||||||
| Height | 1465 | 1695 | ||||||||
| Width | 2305 | |||||||||
| 5 Nominal Weight (kgs) | 853 | 937 | ||||||||
|
6 Sound Pressure Level (dBA )
7 Sound Power Level (dBA) |
Outdoor (low/high fan) | 59 / 64 | 60 / 65 | |||||||
| Outdoor (low/high fan) | 76 / 81 | 77 / 82 | ||||||||
| MEPS Certified | Yes | Yes | ||||||||
