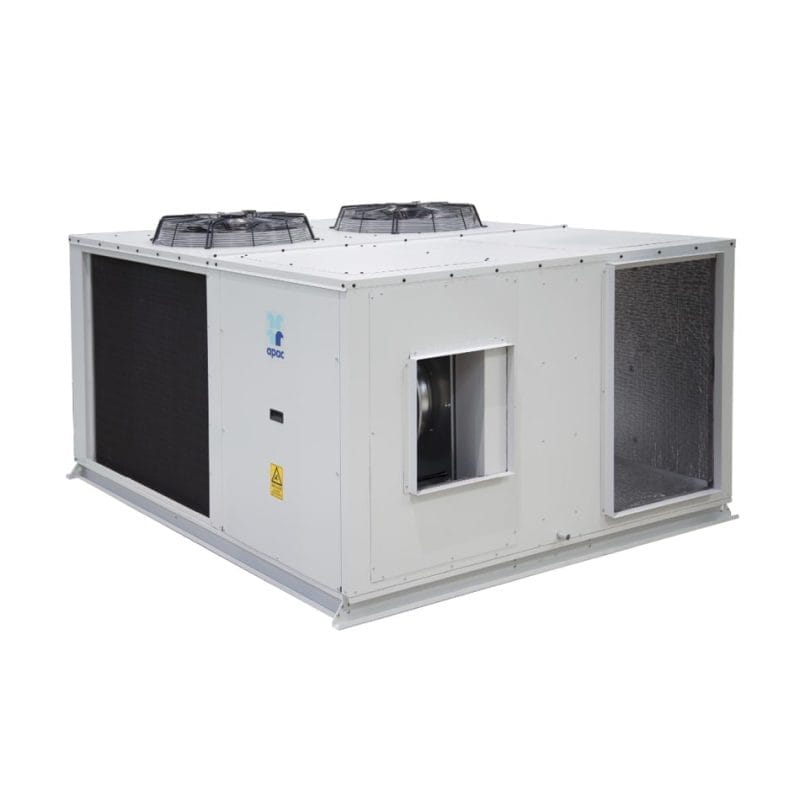

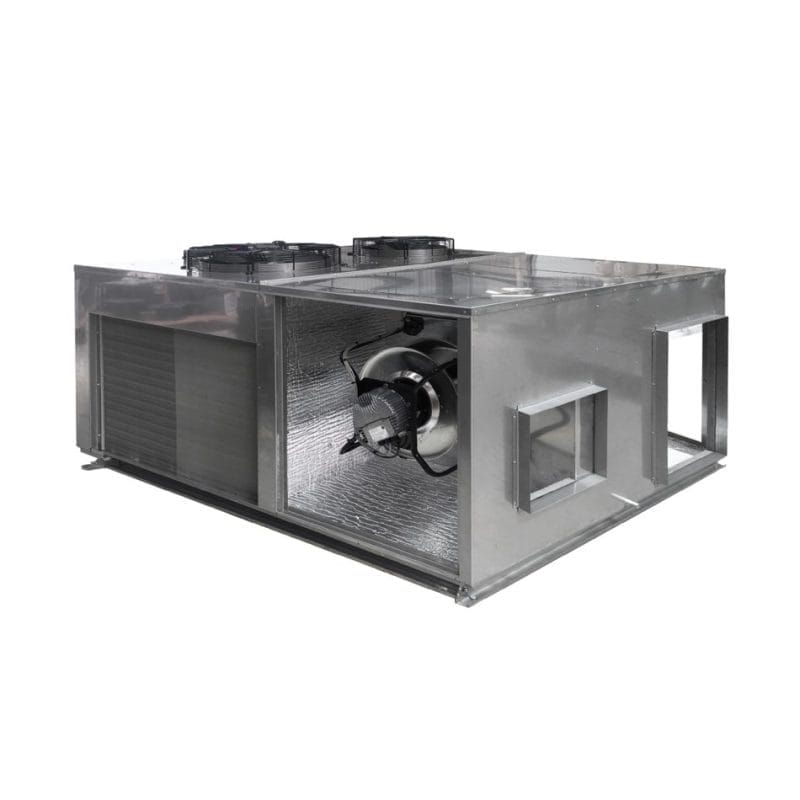

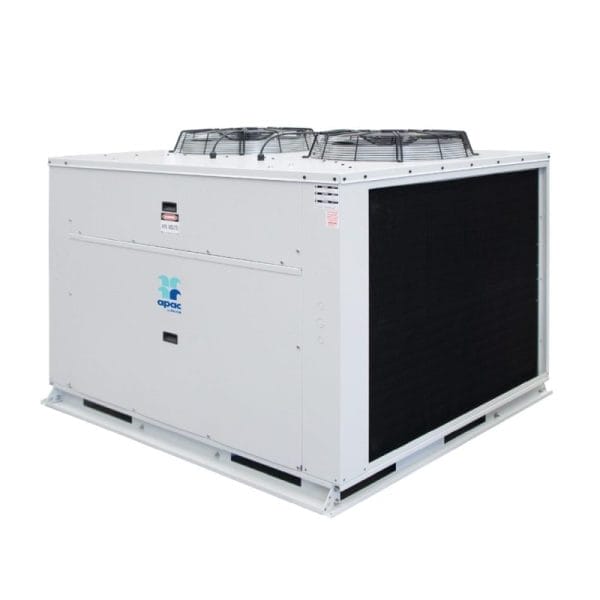

Apac P040AHR 39.76kW Signature Rooftop Package Unit

SKU: P040AHR

39.76 kW Cooling | 33.32 kW Heating
Apac P040AHR 39.76kW Signature Rooftop Package Unit

  • Quieter operation with 12db(A) sound reduction
  • Energy efficient | MEPS Compliant | Quieter operation

5 Years Manufacturer’s Warranty


Or own it from $0.00 weekly for 6 months* zip money
Or pay in slices, no interest ever humm

Model Number (Reverse Cycle) Packaged Unit P040AHR
Rated Cooling
 Total Capacity (kW)3 39.76
Sensible 3 33.32
EER (kW/ikW)3 3.29
Rated Heating1
 Total Capacity (kW) 40.1
COP 3.61
MEPS
Certified		 MEPS Certified/ BCA Yes
Operating Range
 Maximum °C 50
Minimum °C -10
Capacity Steps % 0/50/100
Compressor
 Type Scroll
Starter D.O.L (Optional Soft Starter)
Qty 2
Outdoor Fan
 Type Hybrid Axial
Speed Control Variable Speed
Qty 2
Refrigerant System
 Type R410A
Charge Per Circuit kg 7.3
No of Circuits 2
Indoor Fan
 Type EC Plug
Speed Control Potentiometer
Qty 1
Airflow Indoor (L/s)
 Nominal 2080
Maximum 2600
Minimum 1560
Available External
Static Pressure		 Pa High Static Capability (See Fan Performance Curves)
IP Rating IP44
Power Supply (Volt/Phase/Hz) 400-415V / 3Ph + N / 50Hz
Rated Load
Amps4		 Total 20.7
Full Load
Amps5		 Total 39.8
Dimensions (mm)
 Height 1190
Width 1850
Length 2400
Nominal
Weight2.		 kg 648
Rated Sound Power db(A) 66.3

Features

  • Scroll type compressors
  • EC plug fans with high static capability up to 500pa
  • Hybrid axial fan (12-45kW)
  • EC hybrid axial fan (55-95kW)
  • TXV refrigerant control
  • Condenser coil anti-corrosion protection
  • Open controls
  • 25mm PE closed cell insulation
  • Phase fail protection relay
  • MEPS certified
  • BCA compliant

    Factory options customised to order
  • Compressor soft starter
  • High static pressure outdoor fans
  • Double layered insulation to indoor section
  • Capacity modulation control
  • Outdoor coil(s) with anti-corrosion post-treatment
  • Indoor coil(s) with anti-corrosion post-treatment
  • Outdoor coil guards, powder coated
  • Discharge & suction isolation valves
  • Liquid line isolation valves across filter drier
  • Cable markers
  • Fire relay
  • APAC Supply & Return connections
  • High Level Interface (HLI) Modbus connectivity
  • Integrated filter frame 50mm
  • Economiser – dampers and actuators (no controls)

Factory options engineered to order

  • 316 stainless steel cabinet, unpainted
  • 304 stainless steel cabinet, powder coated
  • Stainless steel external fixings
  • Outdoor coil(s) copper / copper
  • Indoor coil(s) copper / copper
  • Power supply – no neutral (415/3/50)
  • Ductable air off in lieu of standard axia

Apac P040AHR 39.76kW Signature Rooftop Package Unit – Brochure
