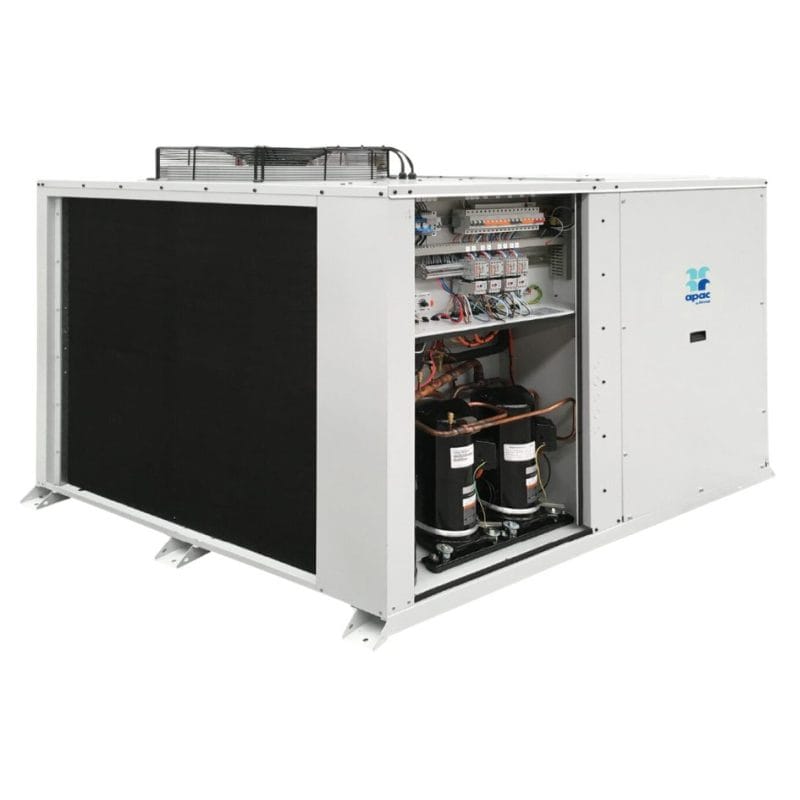

Apac P048AHR 45.84 kW Signature Compact Rooftop Package Unit

Features

• Tandem scoll compressors for high system efficiency at full & part load
• 35% smaller footprint than equivalent RTU
• 25% less gas charge than equivalent RTU
• 42% less components than equivalent RTU
• EC plug fans with high static capability up to 500pa
• EC hybrid axial fan
• TXV refrigerant control
• Condenser coil anti-corrosion protection
• Open controls
• 25mm PE closed cell insulation
• Phase fail protection relay
• MEPS certified

Factory options customised to order

• Compressor soft starter
• High static pressure outdoor fans
• Double layered insulation to indoor section
• Capacity modulation control
• Outdoor coil(s) with anti-corrosion post-treatment
• Indoor coil(s) with anti-corrosion post-treatment
• Outdoor coil guards, powder coated
• Discharge & suction isolation valves
• Liquid line isolation valves across filter drier
• Cable markers
• Fire relay
•  APAC Supply & Return connections
• High Level Interface (HLI) Modbus connectivity
•  Integrated filter frame 50mm
•  Economiser – dampers and actuators (no controls)

Factory options engineered to order

• 316 stainless steel cabinet, unpainted
• 304 stainless steel cabinet, powder coated
• Stainless steel external fixings
• Outdoor coil(s) copper / copper
• Indoor coil(s) copper / copper
• Power supply – no neutral (415/3/50)

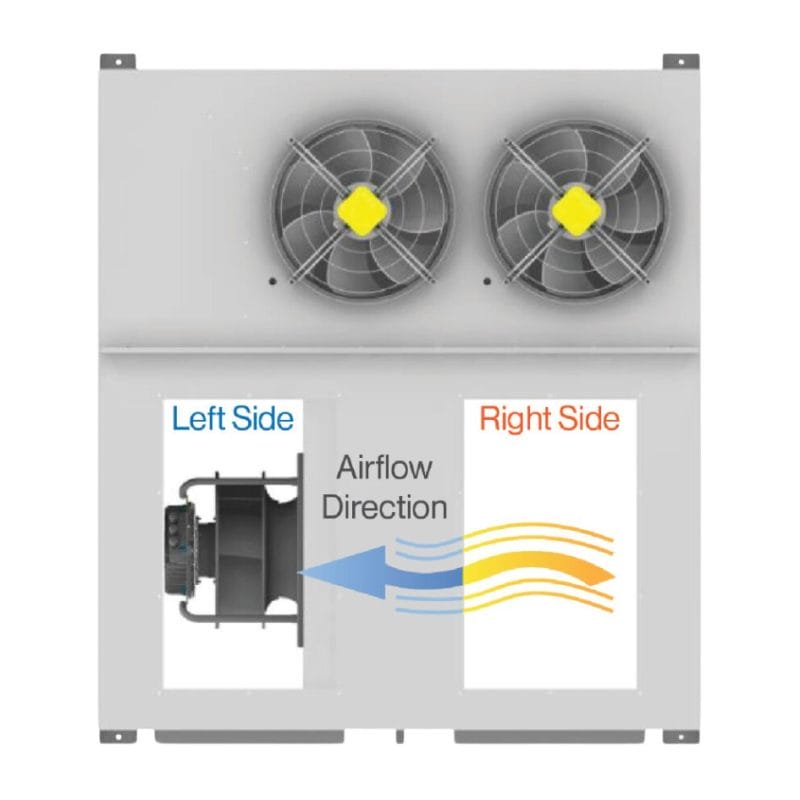

• Ductable air off in lieu of standard axial
