Apac S030IHR / S030OVR 31.02 kW Signature Split Ducted Horizontal
Air Conditioning Free Pickup Locations
Apac S030IHR / S030OVR 31.02 kW Signature Split Ducted Horizontal
Apac S030IHR / S030OVR 31.02 kW Signature Split Ducted Horizontal

Apac S030IHR / S030OVR 31.02 kW Signature Split Ducted Horizontal

SKU: S030IHR / S030OVR

31.02 kW Cooling | 30.20 kW Heating

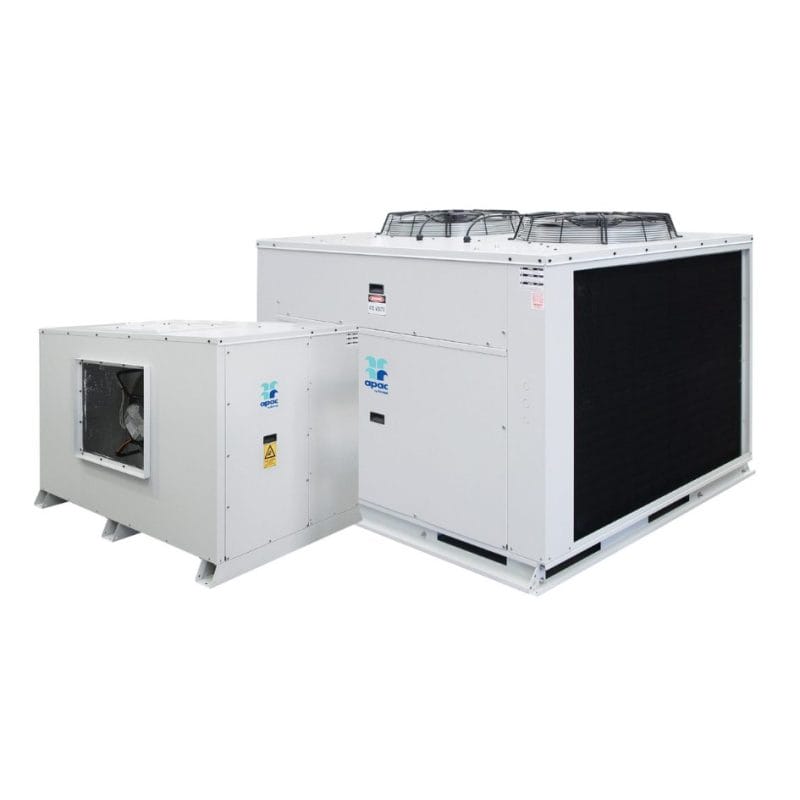

Apac S030IHR / S030OVR 31.02 kW Signature Split Ducted Horizontal

  • High static capability up to 500pa
  • Quieter operation with 12db(A) sound reduction
  • Condenser coil anti-corrosion protection | MEPS Compliant

5 Years manufacturer’s warranty


Or own it from $0.00 weekly for 6 months* zip money
Or pay in slices, no interest ever humm

Model Number (Reverse Cycle)

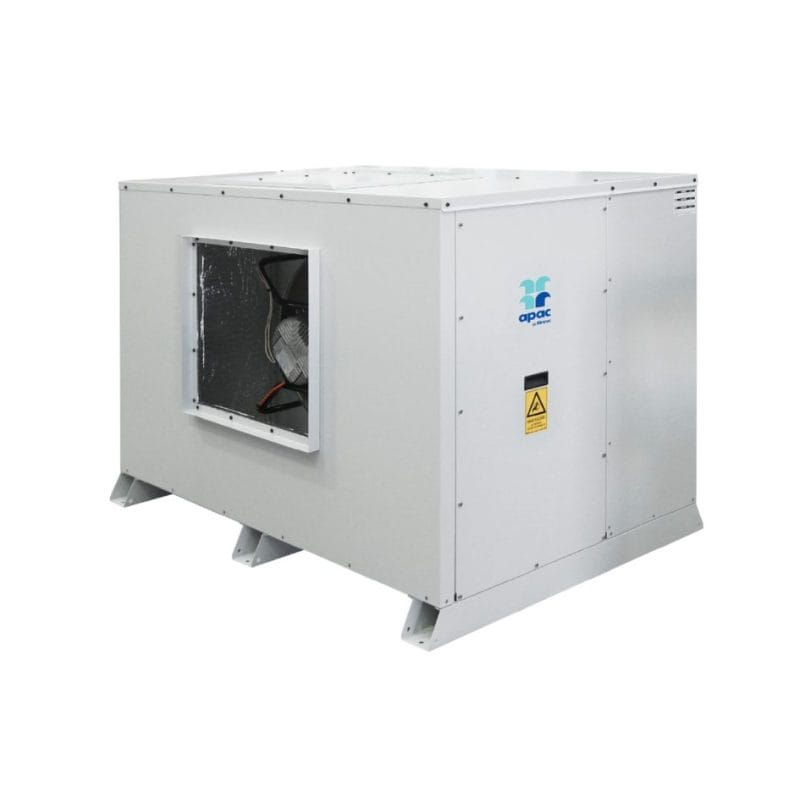

 Indoor Unit S030IHR
Outdoor Unit S030OVR
Rated Cooling
 Total Capacity (kW)3 31.02
Sensible3 25.97
EER (kW/ikW)3 3.6
Rated Heating
 Total Capacity (kW) 30.2
COP 3.6
MEPS Certified Yes
Operating Range
 Maximum °C 50
Minimum °C -10
Capacity Steps % 0/50/100
Compressor
 Type Scroll
Starter D.O.L (Optional Soft Starter)
Qty 2
Outdoor Fan
 Type Hybrid Axial
Speed Control Variable Speed
Qty 2
Refrigerant System
 Type R410A
Charge Per Circuit kg 5.3
No of Circuits 2
Indoor Fan
 Type EC Plug
Speed Control Potentiometer
Qty 1
Airflow Indoor (L/s)
 Nominal 1670
Maximum 2088
Minimum 1253
Available External
Static Pressure		 Pa High Static Capability (See Fan Performance Curves)
IP Rating IP44
Power Supply (Volt/Phase/Hz) 400-415V / 3Ph + N / 50Hz
Rated Load Amps4 Outdoor/Indoor/
Total		 14.8/ 1.2/ 15.9
Full Load Amps5 Outdoor/Indoor/
Total		 24.2/4.2/28.4
Outdoor Dimensions (mm)
 Height 1190
Width 1850
Length 1425
Indoor Dimensions (mm)
 Height 1195
Width 1600
Length 1100
Indoor and Outdoor Pipe Connection Diameter
 Liquid mm (inch) 9.5 (3/8″) x 2
Gas mm (inch) 19.1 (3/4″) x 2
Nominal Weight2. Outdoor kg 382
Nominal Weight2. Indoor kg 204
Rated Sound Power db(A) 66.5



1. For reverse cycle model only

2. For base model only. Factory options will vary

3. Performance excludes ikW of evaporator fan motor

Features

  • Field configurable supply air outlet
  • EC plug fans with high static capability up to 500pa
  • Hybrid axial fan (12-45kW)
  • EC hybrid axial fan (55-95kW)
  • TXV refrigerant control
  • Condenser coil anti-corrosion protection
  • Open controls
  • 25mm PE closed cell insulation
  • Phase fail protection relay
  • MEPS certified
  • BCA compliant
  • Factory options customised to order

Outdoor

  • Compressor soft starter
  • Copper/copper coil(s)
  • Capacity modulation control
  • High static pressure outdoor fans
  • Outdoor coil(s) with anti-corrosion post-treatment
  • Outdoor coil guards, powder coated
  • Discharge & suction isolation valves
  • High Level Interface (HLI) Modbus connectivity
  • Cable markers

Indoor

  • Double layered insulation to indoor section
  • Copper/copper coil(s)
  • Indoor coil(s) with anti-corrosion post-treatment

Factory options engineered to order

Outdoor

  • 316 stainless steel cabinet, unpainted
  • 304 stainless steel cabinet, powder coated
  • Stainless steel external fixings
  •  Coil(s) copper / copper
  • Power supply – no neutral (415/3/50)
  • Ductable air off in lieu of standard axial
    Indoor
  • Stainless steel external fixings
  • Coil(s) copper / copper
  •  Power supply – no neutral (415/3/50)
  • R22/R407C application
