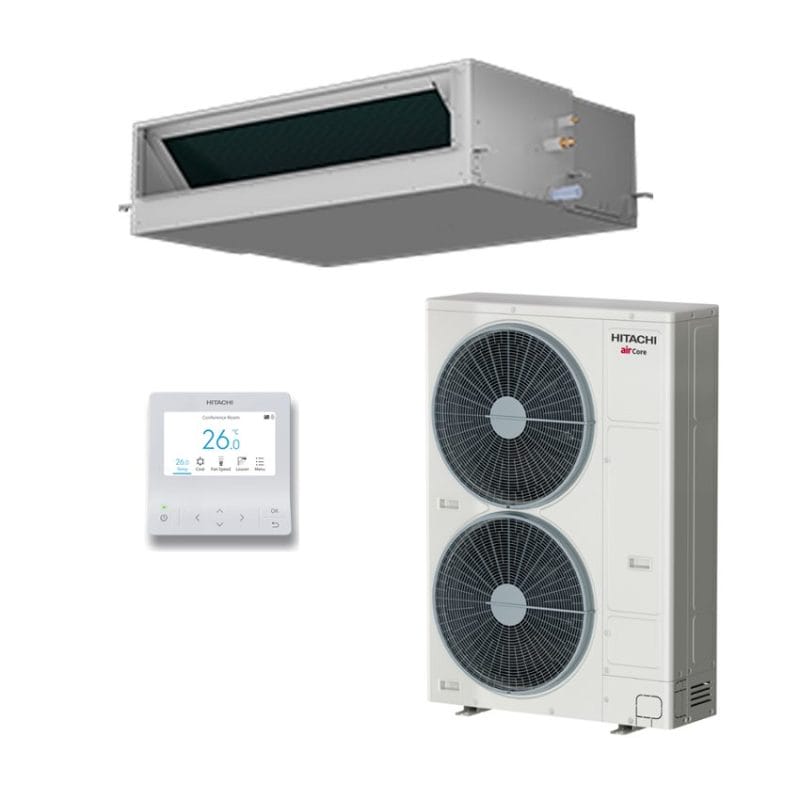

Fully Installed Hitachi PPIH-6.5UFA1NQ 16.0kW airCore700 High Static Ducted System Air Conditioner
Hitachi PPIH-6.5UFA1NQ | PAS-6.5UFASNQ1 16.0kW airCore700 High Static Ducted System Air Conditioner
- 9 outlets and 2 zones
- Based on Single Storey dwelling
- Installed by License and Arctick Certified Installers
- Outdoor unit to be placed on Concrete slab | PVC Slab | PVC Mounting Blocks.
- Weatherproof isolator placed at outdoor.
- Use of PVC or Colourbond Ducts.
- Includes electrical circuit up to 15 metres.
- 5 years full manufacturer warranty on Parts and Labour.
- Sydney, Central Coast, and Newcastle Only
*T and C Applies
$12,109.00
Out of stock
| IDU | PPIH-6.5UFA1NQ | |
| ODU | PAS-6.5UFASNQ1 | |
| Power supply (Indoor) | V/Ph/Hz | 220-240~,50 |
| Power supply (Outdoor) | V/Ph/Hz | 220-240~,50 |
|
Cooling
|
Rated Capacity kW | 16 |
| Capacity Range[Min~Max] kW | 6.0~18.0 | |
|
Heating
|
Rated Capacity kW | 18 |
| Capacity Range[Min~Max] kW | 6.5~20.0 | |
| AEER | Cooling | 3.21 |
| ACOP | Heating | 3.85 |
|
TCSPF(Cooling) Residential
|
Hot | 4.46 |
| Average | 4.12 | |
| Cold | 4.27 | |
|
HSPF(Heating) Residential
|
Hot | 4.56 |
| Average | 3.66 | |
| Cold | 3.11 | |
|
Indoor Unit
|
External Static Pressure Range Pa | 60~310 |
| Air Flow Range L/s | 500~900 | |
| Sound Pressure Level [Hi2/Hi1/Hi/Med/Lo/SLo] dB[A | 52/50/47/45/41/39 | |
| Sound Power Level dB[A] | 65 | |
| Dimension [W×H×D] mm | 1300×350×890 | |
| Supply Air Spigot [W×H] mm | 1204×222 | |
| Return Air Spigot [W×H] mm | 1135×308 | |
| Net/Gross Weight kg | 79/88 | |
|
Outdoor Unit
|
Sound Pressure Level-Cooling dB[A] | 57 |
| Sound Pressure Level-Heating dB[A] | 59 | |
| Sound Pressure Level-Night dB[A | 54 | |
| Dimension [W×H×D] mm | 950×1380×320 | |
| Net/Gross Weight kg | 108.0/118.5 | |
|
Refrigerant type
|
Type | R32 |
| Charge kg | 3.4 | |
|
Refrigerant pipe
|
Liquid side/Gas side mm | Φ9.52/Φ15.88 |
| Max. pipe length m | 75 | |
| Max. Height difference m | 30 | |
| Add Refrigerant Amount g/m | 35 | |
| Chargeless m | 30 | |
|
Guaranteed Temperature Operation Range
|
Cooling °C (db) | -5~52 |
| Heating °C (wb) – | -15~15.5 |
Description
16.0 kW Cooling
18.0 kW Heating
Indoor Unit Frostwash | Backlit Coloured Controller | Night Quiet Operation
