SALE

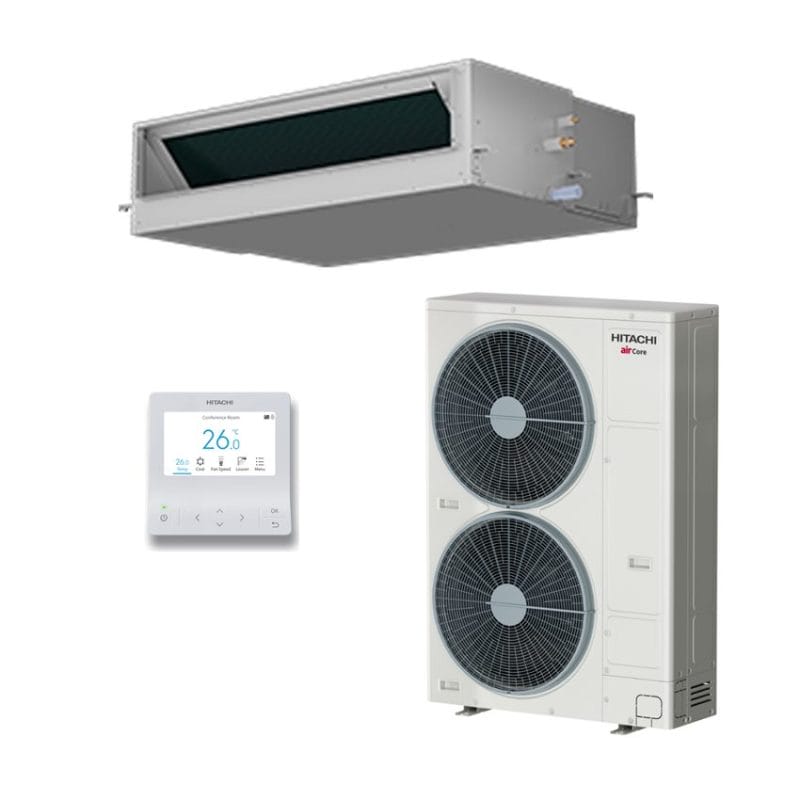

Fully Installed Hitachi PPIH-5.0UFA1NQ 12.5kW airCore700 High Static Ducted System Air Conditioner

SKU: PPIH-5.0UFA1NQ | PAS-5.0UFASNQ1 | PC-ARFG2-Z | Fully Installed

Fully Installed Hitachi PPIH-5.0UFA1NQ | PAS-5.0UFASNQ1 12.5kW airCore700 High Static Ducted System Air Conditioner

$9,495.00

Out of stock

Hitachi Ducted System RPI-5.0FSN2SQ/RAS-5HVNC1
Indoor Outdoor	RPI-5.0FSN2SQ RAS-5HVNC1
Capacity kW
Cooling Capacity Cooling Capacity Range Heating Capacity Heating Capacity Range	12.5 5.7 – 14.0 14.0 5.0 – 18.0
Air Flow l/sec
Air Flow l/s (Hi / Med / Low / S low) External Static Pa	783 / 716 / 566 120
Energy Efficiency
EER / AEER COP / ACOP	3.40 / 3.01 4.35 / 3.78
Sound Pressure Level (dB(a))
Indoor Unit (Hi / Med / Low / S low) cooling Outdoor Unit (Cool / Heat / Night)	49 / 46 / 43 52 / 54 / 50
Dimensions (mm)
Indoor Unit: (H x W x D mm) Outdoor (H x W x D) Indoor Unit Separable Weights: Indoor kg / Outdoor kg	350 x 1300 x 800 1140 x 950 x 370 Yes 61 / 89
Weights (kg)
Indoor / Outdoor	61 / 89
Working Range (°C db)
Cooling	-5 to 46 °C
Heating	-20° / 15°C
Piping
Pipe Connection Sizes Liquid Ømm / Gas Ømm Max Pipe Length (m) Max Pre Charged Length (m) Max Pipe Lift (m) (Outdoor Above / Outdoor Below) Refrigeration Connections (Indoor / Outdoor	9.52 / 15.88 75 30 30/20 Flare Nut / Flare Nut
Air Spigot / Drain Dimensions
Supply Air Spigot (W x H mm) Return Air Spigot (W x H mm)	1205 x 220 813 x 306
Electrical
Power Supply Outdoor Unit Max Current Interconnection Wires mains Interconnection Wires comms	AC 1 Ph 220 – 240V 50Hz 26 0.75mm² 2C + E (min) Twisted Pair cable with Shield 0.75mm² min
