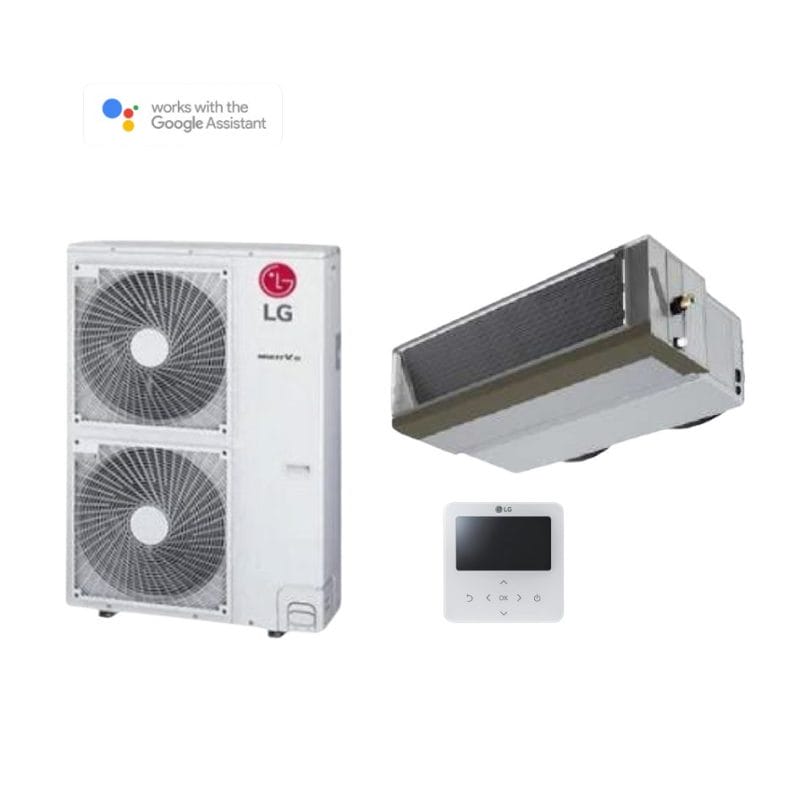

LG UHS140SPSET 14kW Splittable High Static Inverter Ducted Air Conditioner System 1 Phase

SKU: UHS140SPSET / UHN140M3S / UU140WR3 / PREMTB101

14.0kW Cooling | 16.50kW Heating
LG UHS140SPSET 14kW Splittable High Static Inverter Ducted Air Conditioner System 1 Phase
Indoor: UHN140M3S | Outdoor: UU140WR3 | System: UHS140SPSET
Wired Controller Included (PREMTB101)

5 Years Manufacturer’s Warranty

Price range: $4,139.00 through $4,325.00

Select State

Clear

Insulated Copper Pair Coil

Quantity

Or own it from $159.19 weekly for 6 months*

Or pay in slices, no interest ever

CATEGORY		INDOOR	UHN140M3S
CATEGORY		OUTDOOR	UU140WR3
COMBINATIONAL SPECIFICATION		UNIT
Cooling Capacity	Rated 2)	kW	14
Cooling Capacity	Min ~ Max	kW	5.6 ~ 15.7
Heating Capacity	Rated 2)	kW	16.5
Heating Capacity	Min ~ Max	kW	6.6 ~ 17
AEER			3.22
ACOP			3.71
Rated Current	Cooling	A	19.1
Rated Current	Heating	A	19.5
Full Load Amps		A	29
Air Flow Rate	Rated	L/s	900
Air Flow Rate	Min ~ Max	L/s	468 ~ 1,073
External Static Pressure	Min ~ Max	Pa	49 ~ 157
Indoor	Net (W x H x D)	mm	1,250 x 360 x 820
	Net Weight	kg	47
	Cooling ((SH)/H/M/L)	dB(A)	45.0 / 44.0 / 42.0
Outdoor	Net (W x H x D)	mm	950 x 1,380 x 330
	Net Weight	kg	89
	Cooling / Heating (@ 1.5 m height)	dB(A)	52 / 53
Power Supply		Ø, Hz, V	1, 50 Hz 220-240 V
Compressor	Type	–	Inverter Scroll
Compressor	Motor Type	–	BLDC
Heat Exchanger	Fin Type	–	Wide Louver Plus
Heat Exchanger	Corrosion Protection (Coating)	–	Black 2
Refrigerant	Type	–	R32
Refrigerant	Pre-charge Length	m	20
Pipe size	Liquid	mm(inch)	Ø9.52 (3/8)
	Gas	mm(inch)	Ø15.88 (5/8)
	Drain Pipe (Drain Pump) OD/ID	mm(inch)	Ø32 (1-1/4) / 26 (1-1/32)
Piping Length	IDU – ODU (Rated / Max / Min)	m	7.5 / 85 / 5.0
Maximum Height Difference	IDU – ODU (Max)	m	30
Air Vent	Return (Oval)	mm	2 x 400
Air Vent	Supply (W x H, Flange)	mm	1,148 x 292
Continuous Operation	Cooling	°C (DB)	-15 ~ 48
Continuous Operation	Heating	°C (WB)	-18 ~ 18
Wi-Fi Compatible 4)			Optional

The LG Splittable Ducted indoor unit has a built-in plenum which helps to reduce extra costs on installation as no customised plenum needs to be made by the installer. The LG Splittable unit is simple to handle in tight spaces as the unit can be easily dissembled and reassembled in the roof cavity.
