ActronAir Advance EAA25BS / EFV25BS 25.0kW Two Piece Indoor Split Ducted System 3 Phase

SKU: CRV25BT | EAA25BS | EFV25BS

25.0 kW Cooling | 26.0 kW Heating
ActronAir Advance CRV25BT / EAA25BS / EFV25BS 25.0kW Two Piece Indoor Split Ducted Air Conditioner System | 3 Phase
Includes Indoor EAA25BS / EFV25BS | Includes Outdoor CRV25BT
Optional Controllers: NEO TOUCH Master Wall Controller (Black/White) / 7 day wall controller (White/Grey)
Optional: Horizontal Discharge Outdoor Unit

Optional Zone Barrels:

Supported Insulated Copper Pair Coil
22.22 mm (7/8″) | 12.7 mm (1/2″)

5 Years Manufacturer’s Warranty





> >

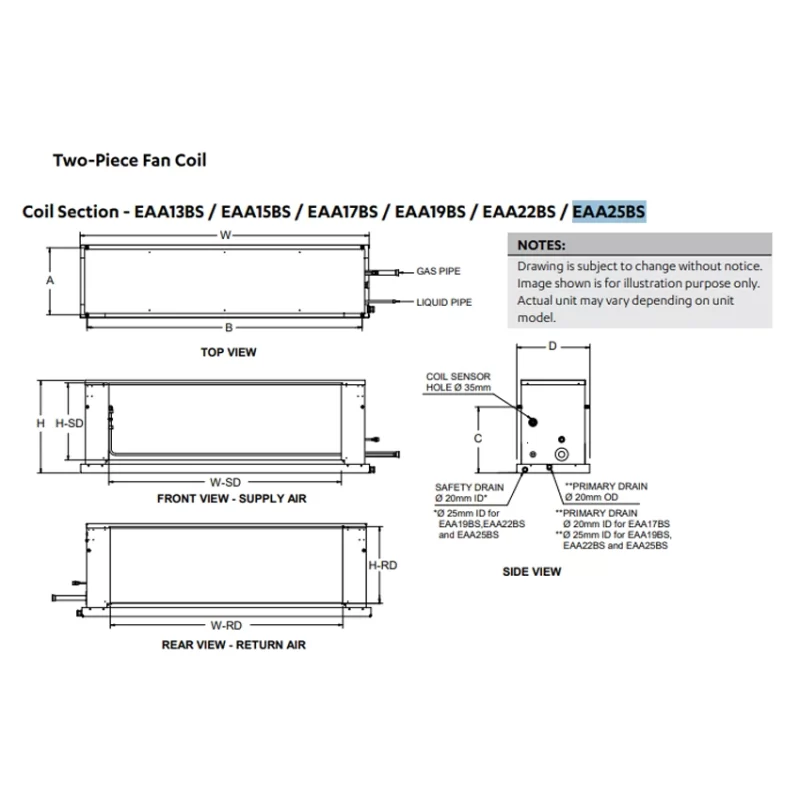

Unit Model Number
Overall Nominal Dimension (OA) Mounting Distance (Centre to Centre
/Base Foot )
Supply Duct Return Duct
Gas Pipe
(Swaged)
Liquid Pipe (Swaged)
H W D A B C H-SD x W-SD H-RD x W-RD
EAA25BS 487 1510 343 310 1445 361 411 x 1194 411 x 1194 Ø 22.22mm (7/8″) Ø 12.7mm (1/2″)

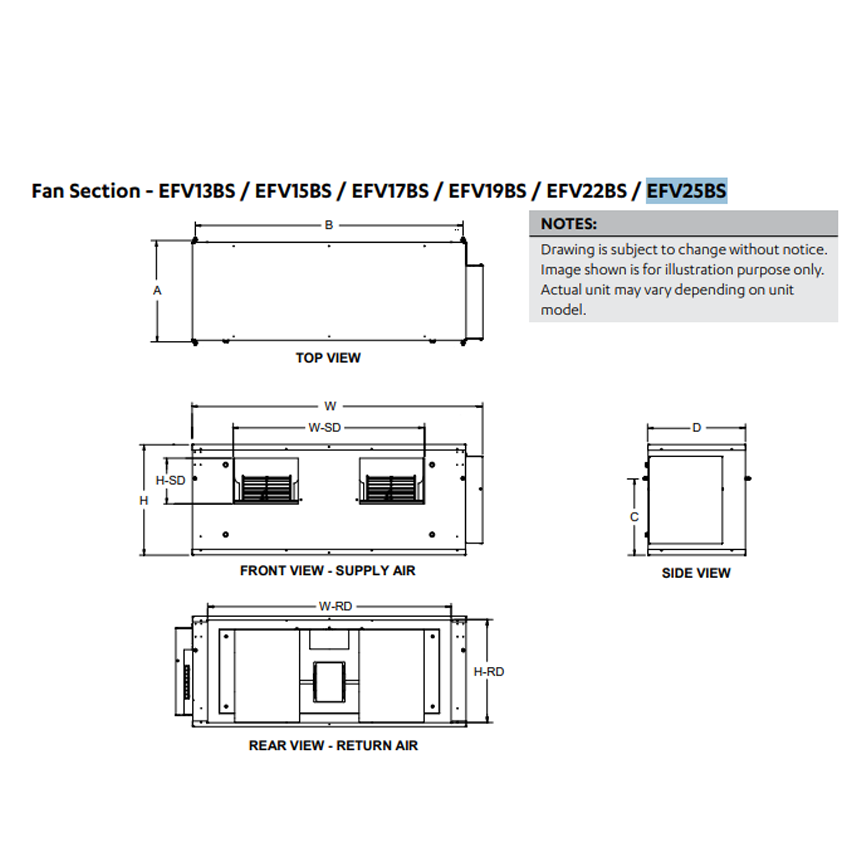

Unit Model Number
Overall Nominal Dimension (OA) Mounting Distance Base Foot
(Centre to Centre)
Supply Duct Return Duct
H W D A B C H-SD x W-SD H-RD x W-RD
EFV25BS 483 1369 412 422 1285 358 305 x 734 453 x 1195

actron air splittable

Built Aussie Tough

The Advance systems is designed to last in our uniquely challenging climate. Powder coated to provide a tough durable finish that is highly resistant to corrosion, with a louvered grille, protecting it from the elements like direct sunlight and hail, or stray balls kicked by children playing in the backyard, as well as Hydrophilic blue fin coil coat providing additional protection to reduce corrosion and increase durability in high temperature and coastal environments. Advance is built Aussie tough.

Quiet Operation

We believe in keeping you comfortable inside and outside of your home. That’s why Advance uses the latest technologies such as inverter compressors, modulating EC indoor and outdoor fans and compressor jacket consisting of high performance acoustic cotton to absorb noise and vibration from the compressor, all designed to keep noise to a minimum.

Australian Made Comfort

Enjoy the peace of mind that comes with our Australian owned, designed, and manufactured product. Innovative controls, a thoughtfully designed indoor unit, intelligent zoning, and a robust vertical discharge outdoor unit are all tailored for the way Australians truly live.

R32 Refrigerant

ActronAir is environmentally aware and considers the potential impact of the refrigerants it uses. That’s why Advance utilises R32*, with a substantially lower Global Warming Potential than some alternative refrigerants, while enjoying the benefits of optimised energy efficiency.

Variable Fan Technology

Unlike other systems who typically can only ramp down to 60% at best, forcing you to pay for conditioned air you are not using, the Advance series can ramp its indoor fan speed down as low as 30%*, allowing it to deliver just the right amount of conditioned air – no more dump zones, no more soaring power bills.

Smarter Startup

In heating, the Advance indoor unit heats up to a preset temperature before the fan turns on, making sure warm air is delivered, avoiding cold drafts.

ActronAir Advance CRV25BT / EAA25BS / EFV25BS 25.0kW Two Piece Indoor Split Ducted Air Conditioner System | 3 Phase – Brochure

Description

25.0 kW Cooling
26.0 kW Heating

Two Piece Indoor Unit | Integrated zone card | Quiet Mode
