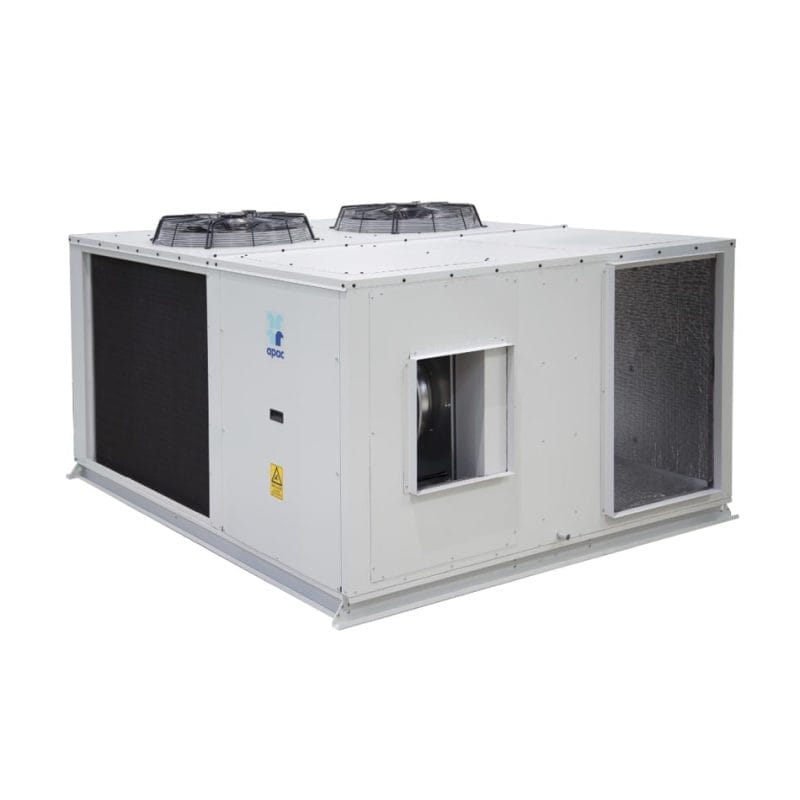

Apac P018AHR 17.43kW Signature Rooftop Package Unit - 1
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE
SALE

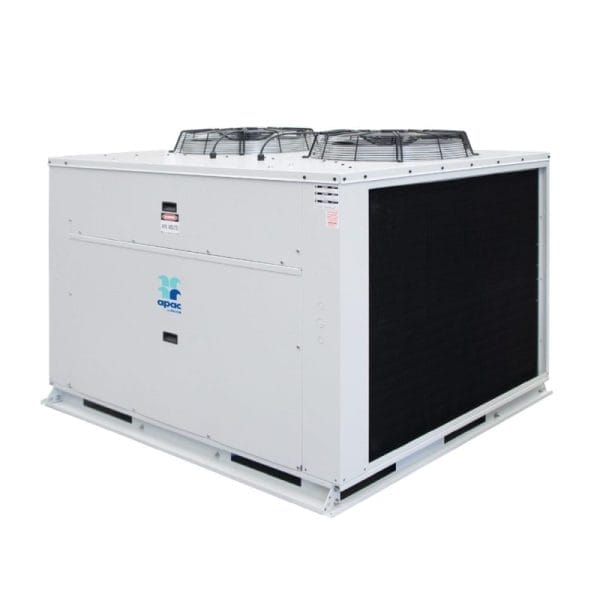

Apac P018AHR 17.43kW Signature Rooftop Package Unit - 2

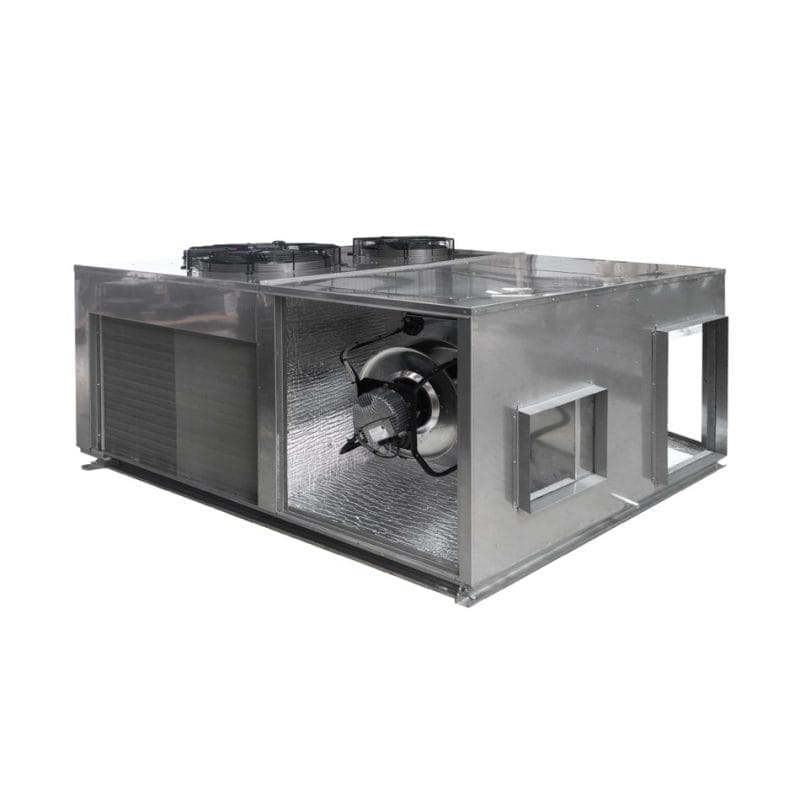

Apac P018AHR 17.43kW Signature Rooftop Package Unit - 3

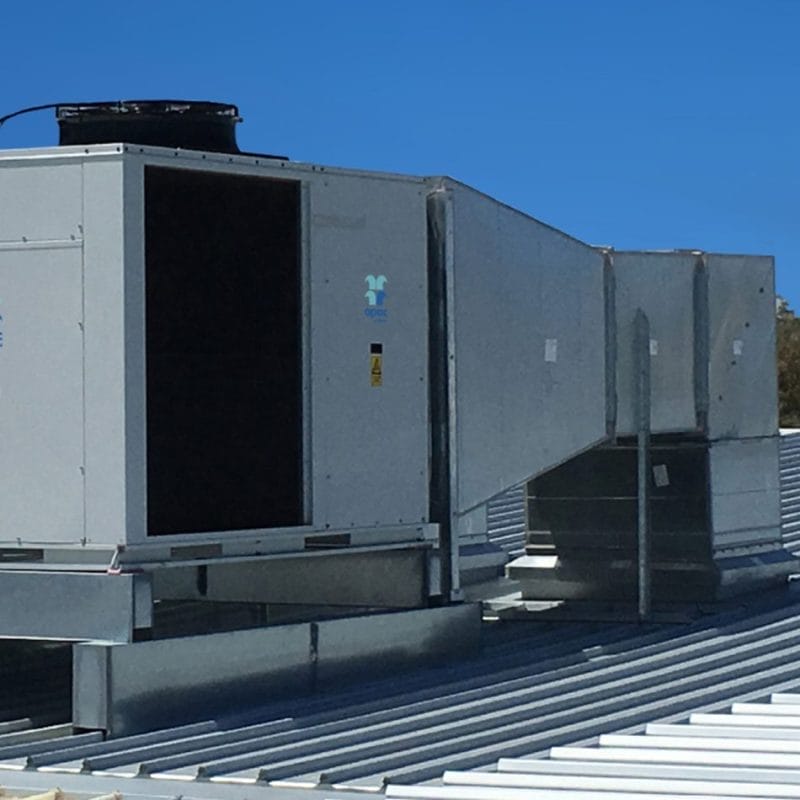

Apac P018AHR 17.43kW Signature Rooftop Package Unit - 4
Air Conditioning Free Pickup Locations
Apac P018AHR 17.43kW Signature Rooftop Package Unit - 1
Apac P018AHR 17.43kW Signature Rooftop Package Unit - 2
Apac P018AHR 17.43kW Signature Rooftop Package Unit - 3
Apac P018AHR 17.43kW Signature Rooftop Package Unit - 4

Apac P018AHR 17.43kW Signature Rooftop Package Unit

SKU: P018AHR

17.43 kW Cooling | 16.70 kW Heating
Apac P018AHR 17.43kW Signature Rooftop Package Unit

  • Quieter operation with 12db(A) sound reduction
  • Energy efficient | MEPS Compliant | Quieter operation

5 Years Manufacturer’s Warranty


Or own it from $0.00 weekly for 6 months* zip money
Or pay in slices, no interest ever humm

Model Number (Reverse Cycle) Packaged Unit P018AHR
Rated Cooling
 Total Capacity (kW)3 17.43
Sensible 3 13.58
EER (kW/ikW)3 3.49
Rated Heating1
 Total Capacity (kW) 16.7
COP 3.71
MEPS
Certified		 MEPS Certified/ BCA Yes
Operating Range
 Maximum °C 50
Minimum °C -10
Capacity Steps % 0/100
Compressor
 Type Scroll
Starter D.O.L (Optional Soft Starter)
Qty 1
Outdoor Fan
 Type Hybrid Axial
Speed Control Variable Speed
Qty 2
Refrigerant System
 Type R410A
Charge Per Circuit kg 5.7
No of Circuits 1
Indoor Fan
 Type EC Plug
Speed Control Potentiometer
Qty 1
Airflow Indoor (L/s)
 Nominal 890
Maximum 1113
Minimum 668
Available External
Static Pressure		 Pa High Static Capability (See Fan Performance Curves)
IP Rating IP44
Power Supply (Volt/Phase/Hz) 400-415V / 3Ph + N / 50Hz
Rated Load
Amps4		 Total 9.8
Full Load
Amps5		 Total 16.1
Dimensions (mm)
 Height 1162
Width 1550
Length 1700
Nominal
Weight2.		 kg 372
Rated Sound Power db(A) 61.7



Features

  • Scroll type compressors
  • EC plug fans with high static capability up to 500pa
  • Hybrid axial fan (12-45kW)
  • EC hybrid axial fan (55-95kW)
  • TXV refrigerant control
  • Condenser coil anti-corrosion protection
  • Open controls
  • 25mm PE closed cell insulation
  • Phase fail protection relay
  • MEPS certified
  • BCA compliant

    Factory options customised to order
  • Compressor soft starter
  • High static pressure outdoor fans
  • Double layered insulation to indoor section
  • Capacity modulation control
  • Outdoor coil(s) with anti-corrosion post-treatment
  • Indoor coil(s) with anti-corrosion post-treatment
  • Outdoor coil guards, powder coated
  • Discharge & suction isolation valves
  • Liquid line isolation valves across filter drier
  • Cable markers
  • Fire relay
  • APAC Supply & Return connections
  • High Level Interface (HLI) Modbus connectivity
  • Integrated filter frame 50mm
  • Economiser – dampers and actuators (no controls)

Factory options engineered to order

  • 316 stainless steel cabinet, unpainted
  • 304 stainless steel cabinet, powder coated
  • Stainless steel external fixings
  • Outdoor coil(s) copper / copper
  • Indoor coil(s) copper / copper
  • Power supply – no neutral (415/3/50)
  • Ductable air off in lieu of standard axia
