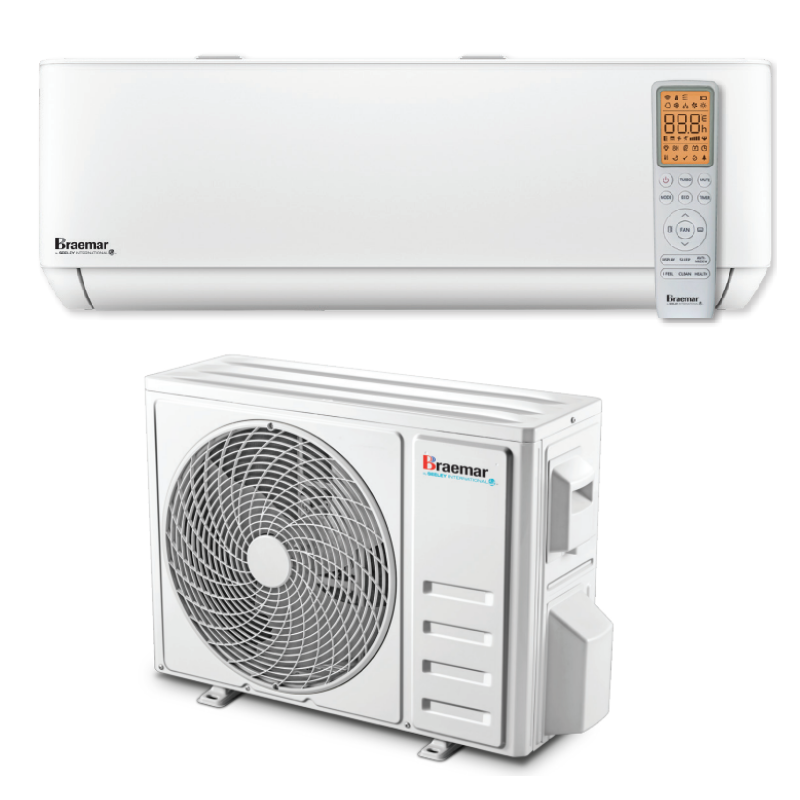

Braemar Innov-aire TCHV70T1S | TSHV70T1S 7.2kW Wall-Mounted Inverter Split System
Braemar Innov-aire TCHV70T1S | TSHV70T1S 7.2kW Wall-Mounted Inverter Split System
7.2 kW Cooling | 7.2 kW Heating
Builtin Wi-Fi control | Triple-layer anti-corrosion coating | Quiet Operation | Low running costs
- 5 Year Comprehensive Warranty
- DRED Ready (RJ45 connection)
|
Model
|
Outdoor | TCHV70T1S | ||
| Indoor | TSHV70T1S | |||
|
Capacity
|
Cooling | kW | 7.20 | |
| Cooling Range | kW | 2.00 – 8.00 | ||
| Heating | kW | 7.20 | ||
| Heating Range | kW | 2.00 – 8.50 | ||
| AEER | W/W | 3.76 | ||
| ACOP | W/W | 4.19 | ||
| Air Flow (Max) | l/s (m³/h) | 330 (1200) | ||
|
Electrical Data
|
Power Supply | V / Hz / Ph | 230 / 50 / 1 | |
|
Power Input (Nominal)
|
Cooling | kW | 1.90 | |
| Heating | kW | 1.70 | ||
| Minimum Circuit Breaker Outdoor | A | 20 | ||
| Maximum Current Input | A | 12.00 | ||
|
Indoor Unit
|
Sound Pressure Level (Max) | dB (A) | 48 | |
| Outline Dimension (W × D x H) | mm | 1097 × 222 × 332 | ||
| Net Weight | kg | 14.0 | ||
|
Outdoor Unit
|
Sound Pressure Level (Max) | dB (A) | 56 | |
| Outline Dimension (W × D x H) | mm | 927 × 380 × 699 | ||
| Net Weight | kg | 42.0 | ||
|
Refrigerant R32
|
Chargeless Length | m | 5 | |
| Additional Charge | g/m | 25 | ||
|
Pipe
|
Outer Diameter
|
Liquid Pipe | mm (Inch) | Ø6.35 (1/4) |
| Gas Pipe | mm (Inch) | Ø12.70 (1/2) | ||
|
Max Distance
|
Height | m | 15 | |
| Length | m | 20 | ||
|
Ambient Temperature Range
|
Cooling | °C | -15 ~ 50 | |
| Heating | °C | -15 ~ 24 | ||
Braemar Innov-aireTM split systems deliver hyper-efficient performance using inverter technology. With innovative design, these split systems provide precise temperature control while lowering energy consumption, helping to reduce your
running costs. With five available system capacities, they offer cooling and heating for year-round comfort in any space, whether it’s a cosy bedroom or a spacious open-plan living area.
- Stylish matte white finish for a contemporary look.
- Available in 5 sizes for domestic and commercial use. Unit can be installed in small homes and large spaces.
- Triple-layer anti-corrosion coating on printed circuit boards to protect electronics.
- Auto-clean function 4 step self-cleaning enables the removal of dirt, keeping odour away and allowing you to breathe healthier air.
Description
7.2 kW Cooling
7.2 kW Heating
Builtin Wi-Fi control | Quiet Operation
