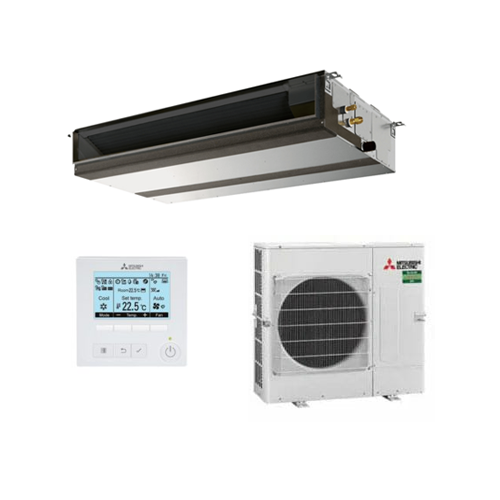

MITSUBISHI ELECTRIC PEAD-M71JAADR1.TH / PUZ-ZM71VHA2-A 7.0kW Low Profile Ducted Air Conditioner System
7.1 kW Cooling | 8.0kW Heating | 1Phase
MITSUBISHI ELECTRIC PEAD-M71JAADR1.TH / PUZ-ZM71VHA2-A 7.0kW Low Profile Ducted Air Conditioner System
Includes Indoor PEAD-M71JAADR1.TH | Outdoor PUZ-ZM71VHA2-A
ZM Series Power Inverter Outdoor | Low Height Model 250mm
Optional PAR-41MAAM Standard Wired Controller | PAC-ZC40L-E 24V, 4 Zone Controller | PAC-ZC40H-E 240V, 4 Zone Controller | PAC-ZC80L-E 24V 8 Zone Controller | PAC-ZC80H-E 240V 8 Zone Controller
5 Years Manufacturer’s Warranty
Price range: $3,549.00 through $4,079.00
| Indoor Unit | PEAD-M71JAAD | |||
| Outdoor Unit | PUZ-ZM 71VHA2-A | |||
| Refrigerant | R32 | |||
| Power Supply (V, Phase, Hz) | V: 230 V, Single-phase, 50 Hz | |||
|
Cooling
|
Capacity [Min-Rated*4-Max] |
kW | 3.30 – 7.10 – 8.10 |
|
| Total Input [Rated]*4 | kW | 1.85 | ||
| EER/AEER*1 | 3.83/3.63 | |||
| Running Current [Rated]*4 | A | 8.3 | ||
|
Sound Pressure Level*2
|
In (Lo-Mid-Hi) | dBA | 30 – 34 – 39 | |
| Out (PWL) | dBA | 47 (67) | ||
| Air Volume (In) Lo-Mid-Hi | L/s | 292 – 350 – 417 | ||
|
Heating
|
Capacity [Min-Rated*5-Max] |
kW | 3.50 – 8.00 – 10.20 |
|
| Total Input [Rated]*5 | kW | 1.93 | ||
| COP/ACOP*1 | 4.14/3.93 | |||
| Running Current [Rated]*5 | A | 8.8 | ||
|
Sound Pressure Level*2
|
In (Lo-Mid-Hi) | dBA | 30 – 34 – 39 | |
| Out (PWL) | dBA | 51 (70) | ||
| Air Volume (In) Lo-Mid-Hi | L/s | 292 – 350 – 417 | ||
| Max. Running Current | A | 21.18 | ||
|
Indoor Unit
|
Input [Rated] | kW | 0.17/0.15 | |
| Dimensions [HxWxD] | mm | 250 x 1100 x 732 | ||
| Weight | kg | 30 | ||
| Static Pressure | Pa | 35/50/70/100/125 | ||
|
Outdoor Unit
|
Dimensions [HxWxD] | mm | 943 x 950 x 300 (+25) |
|
| Weight | kg | 70 | ||
| Breaker Size | A | 25 | ||
|
Ext. Piping
|
Diameter [Liquid/Gas] | mm | ø9.52/ø15.88 | |
| Max. Length/Height | m | 50/30 | ||
|
Guaranteed Operating Range [Outdoor]
|
Cooling*3 | °C | -15 ~ 52 | |
| Heating | °C | -20 ~ 21 | ||
| Supply Air Duct | mm | 1060 x 178 | ||
| Return Air Duct | mm | 1058 x 210 | ||
| Pre-Charge Refrigerant | kg | 2.8kg (30m) | ||
| Additional Refrigerant | g/m | 40 | ||
Low profile design
The height of the PEAD Series (5.0kW-14.0kW) has been unified to 250mm making installation possible in low ceilings with minimal clearance space.
Drainage pump installed as standard
The drainage pump can lift condensation water up to 700 mm from the lower surface of the indoor unit’s main body.
Wide selection of fan speeds
3 fan speeds allowing a wide range of installation possibilities.
Wide external static pressure range
Selectable external static pressure of 35, 50, 70, 100 and 125 Pa.
Long Life Filter
A long life filter supplied as standard and is removable for cleaning.
Flexible Duct Design
With the flexibility of ducted design and up to 125Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.
Wi-Fi Control
Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.
R32 refrigerant
R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
More Features
- Capacity Range: 5.0 kW – 14.0 kW
- External static pressure range 35-125 Pa
- Low profile design
- Built-in condensate pump
- Wide selection of fan speeds
Wi-Fi Control*Experience the versatility and precision of the low-profile ducted Mitsubishi Electric PEAD series air conditioners, designed to meet your heating and cooling needs with exceptional efficiency.
Description
7.1 kW Cooling
8.0 kW Heating
Low Profile 250mm Height | ZM Series
