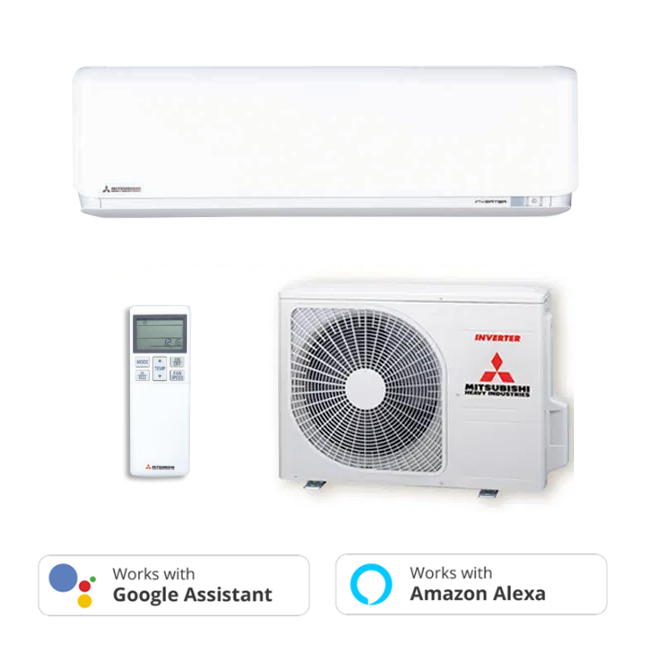

| Indoor | SRK20ZSXA-WF | ||||
| Outdoor | SRC20ZSXA-W | ||||
| Power source (Outdoor Unit) | 1 Phase 240V 50Hz | ||||
|
*Operation data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
2.0 (0.9~3.4) | |
| Heating H1 | 2.7 (0.8 ~5.5) | ||||
| Heating H2 | 3.7 | ||||
|
Power consumption
|
Cooling T1 |
kW
|
0.31 (0.16~0.76) | ||
| Heating H1 | 0.47 (0.14~1.36) | ||||
| Maximum power consumption | kW | 1.92 | |||
|
Running current
|
Cooling T1 |
A
|
1.7 | ||
| Heating H1 | 2.4 | ||||
| Inrush current, maximum current | A | 2.5, 9.0 | |||
| EER | Cooling T1 | 6.45 | |||
| COP | Heating H1 | 5.74 | |||
| Sound power level (JIS C9612) | Outdoor | dB(A) | 56 | ||
|
Sound pressure level (JIS C9612)
|
Indoor |
dB(A)
|
38-31-24-19 | ||
| Outdoor | 43 | ||||
|
Energy label (GEMS 2019)
|
HOT
|
Cooling | 5.5 | ||
| Heating | 4.5 | ||||
|
AVERAGE
|
Cooling | 4.5 | |||
| Heating | 4 | ||||
|
COLD
|
Cooling | 4.5 | |||
| Heating | 3.5 | ||||
|
External dimensions (HxWxD)
|
Indoor |
mm
|
305x920x220 | ||
| Outdoor | 640×800(+71)x290 | ||||
|
Net weight
|
Indoor |
kg
|
13 | ||
| Outdoor | 43 | ||||
|
Airflow
|
Indoor (Cooling) |
l/s
|
188-152-100-83 | ||
| Indoor (Heating) | 203-172-120-90 | ||||
|
Refrigerant (Type, amount, pre-charge length)
|
Quantity | kg | (R32) 1.2 | ||
| Pre charged to pipe length | m | 15 | |||
|
Installation data
|
Refrigerant piping
|
Liquid line |
mm
|
Ø6.35 | |
| Gas line | Ø9.52 | ||||
| Connection method | Flare connection | ||||
| Maximum pipe (one way) length | m | 25 | |||
| Max vertical height diff. between O.U. and I.U. | m | 15 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) | |||
| Standard accessories | Allergen Clear & Photocatalytic Washable Deodorizing Filter, Built-in Wi-Fi | ||||
| Optional parts | Interface kit (SC-BIKN2-E) | ||||
| Demand response (AS4755) | Yes | ||||
