Mitsubishi Heavy Industries FDT125AVNPWVH 12.1kW Four Way Ceiling Cassette Air Conditioner | Single Phase
12.1 kW Cooling | 12.1 kW Heating
Mitsubishi Heavy Industries FDT125AVNPWVH 12.1kW Four Way Ceiling Cassette Air Conditioner | Single Phase
Includes Indoor FDT125VH | Outdoor FDCA125VNP-W

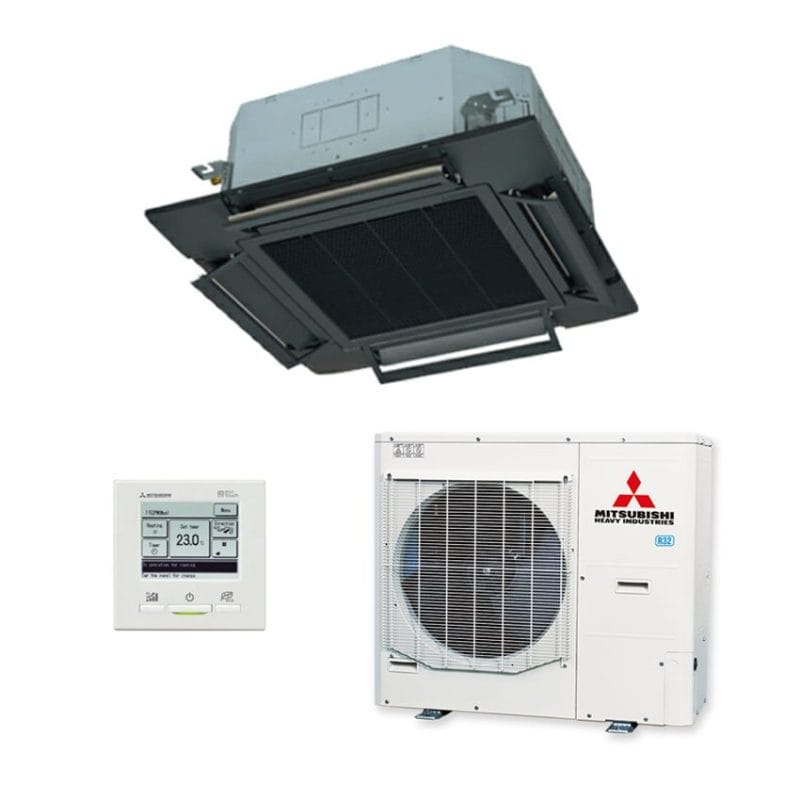

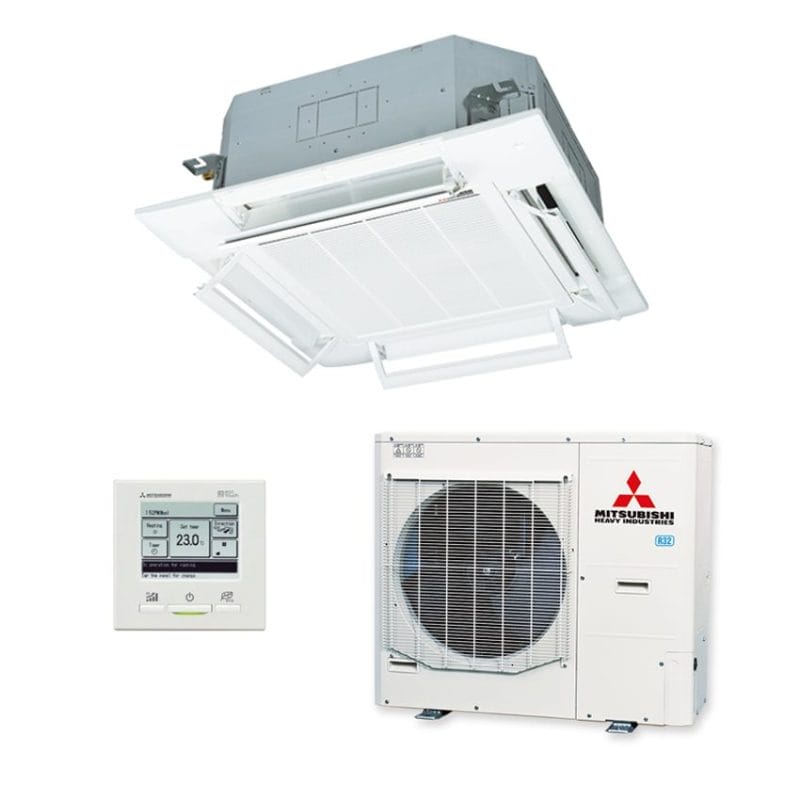

Panel T-PSAE-5BW-E (Fine Snow) or T-PSAE-5BB-E (Shadow Black)
Includes RC-EXZ3A Wired Controller | Quiet Operation | Clean Function
5 Years Manufacturer’s Warranty | Max Pipe length: 30m
| CAPACITY | 12.1kW | |||
| Set | FDT125AVNPWVH | |||
| Indoor | FDT125VH | |||
| Outdoor | FDCA125VNP-W | |||
| Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | |||
|
*Operation Data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
12.1 (5.0-12.1) |
| Heating H1 | 12.1 (4.0-13.3) | |||
| Heating H2 | 8.5 | |||
|
Power Consumption
|
Cooling T1 | 3.69 | ||
| Heating H1 | 3.2 | |||
| Maximum Power Consumption | 4.75 | |||
|
Running Current
|
Cooling T1 |
A
|
15.5 | |
| Heating H1 | 13.5 | |||
| Inrush Current, Maximum Current | 5, 18 | |||
| EER | Cooling T1 | 3.28 | ||
| COP | Heating H1 | 3.78 | ||
| Sound Power Level (JIS C9612) | Outdoor |
dB(A)
|
73 | |
|
Sound Pressure Level (JIS C9612)
|
Indoor | P-Hi:48 Hi:41 Me:39 Lo:31 | ||
| Outdoor | 57 | |||
|
External dimensions (HXWXD)
|
Indoor |
mm
|
298x840x840 | |
| Panel | 35x950x950 T-PSAE-5BW-E (Fine Snow) / T-PSAE-5BB-E (Shadow Black) | |||
| Outdoor | 845x970x370 | |||
|
Net weight
|
Indoor |
kg
|
Unit 25 Panel 5 | |
| Outdoor | 73 | |||
|
Airflow
|
Cooling (Indoor) |
l/s
|
P-Hi:633 Hi:467 Me:417 Lo:300
|
|
| Heating (Indoor) | ||||
|
Installation Data
|
Refrigerant (R32)
|
Quantity | kg | 2.25 |
| Pre-Charged to Pipe | m | 15 | ||
|
Refrigerant Piping
|
Liquid Line |
mm
|
Ø9.52 | |
| Gas Line | Ø15.88 | |||
| Connection Method | Flare Connection | |||
| Maximum Pipe Length (One Way) |
m
|
30 | ||
| Max Vertical Height Diff. Between O.U. and I.U. | ||||
| Controller | RC-E5, RC-EXZ3A, RCH-E3 or RCN-T-5BW-E2 (Fine Snow) / RCN-T-5BB-E2 (Shadow Black) | |||
| Motion Sensor (Optional) | LB-T-5BW-E (Fine Snow) / LB-T-5BB-E (Shadow Black) | |||
| Demand Response (AS4755) | Yes | |||
|
Outdoor air temperature (upper, lower limits)
|
Cooling |
oC
|
-15 to 46 | |
| Heating | -15 to 20 | |||
With quiet operation and Draught Control Technology, which provides efficient airflow while preventing uncomfortable draughts, the FDT series of ceiling cassette systems offer the perfect solution for a range of commercial applications including offices and other commercial spaces. Optional motion sensor offers an energy saving solution by monitoring activity in the room and automatically switching to energy-saving mode at times of low activity.
POWER: Single Phase & Three Phase | AVAILABLE IN: Reverse Cycle
CAPACITIES: 5.6kW | 7.1kW | 10.0kW | 12.1kW | 12.5kW | 14.0kW
Key features
- Quiet operation
- Draught Control Technology to deliver efficient airflow and prevent draughts
- Optional Motion Sensor for increased energy saving
- Clean Air function to improve indoor air quality
- Various timer functions for convenience
Description
12.1 kW Cooling
12.1 kW Heating
Quiet Operation | Draught Control
