ActronAir Advance B CRV22BT / EVV22BS-V 22.00kW Vertical Indoor Split Ducted Air Conditioner System | 3 Phase

SKU: CRV210T / EVV210S-V

22.00 kW Cooling | 23.00 kW Heating
ActronAir Advance CRV22BT / EVV22BS-V 22.00kW Vertical Indoor Split Ducted Air Conditioner System | 3 Phase
Includes Vertical Indoor EVV22BS-V | Outdoor CRV22BT
Optional Controllers NEO TOUCH Master Wall Controller (Black/White) / 7 day wall controller (White/Grey)
Optional Horizontal Discharge Outdoor Unit

Optional Zone Barrels:

Optional Insulated Copper Pair Coil

Insulated Paired Copper Pipe 22.22 mm x 12.7 mm (7/8” X 1/2”)

5 Years Manufacturer’s Warranty

Or own it from $429.19 weekly for 6 months*

Or pay in slices, no interest ever

Select Controller

Clear

Add Supply and Return Air Connections

Or own it from $429.19 weekly for 6 months*

Or pay in slices, no interest ever

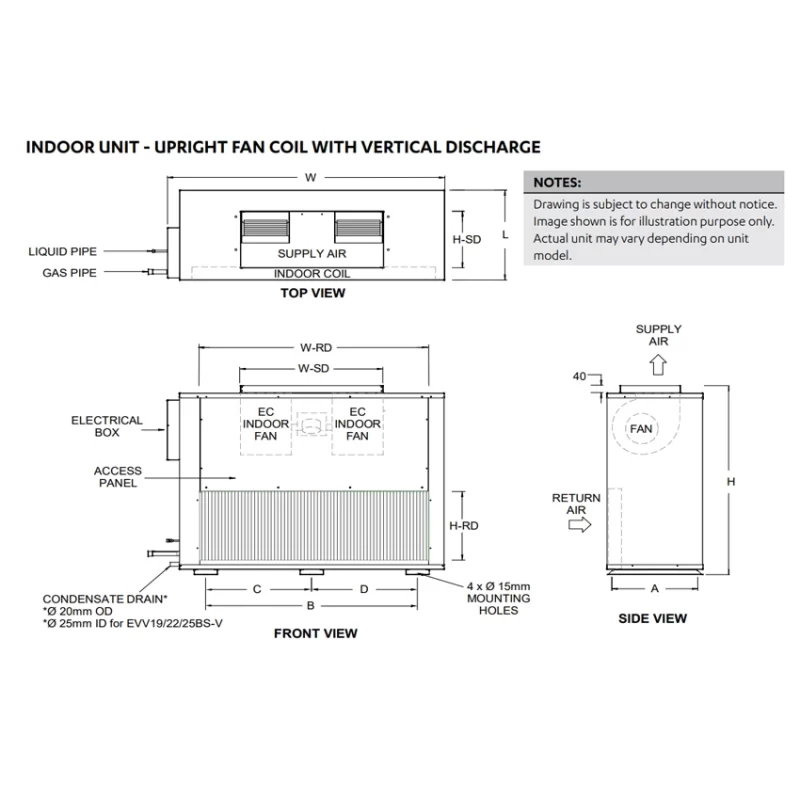

Unit Model Number	Overall Nominal Dimension (OA)			Mounting Distance Base Foot (Centre to Centre)				Supply Duct	Return Duct	Gas Pipe (Swaged)	Liquid Pipe (Swaged)
Unit Model Number	H	W	L	A	B	C	D	H-SD x W-SD	H-RD x W-RD	Gas Pipe (Swaged)	Liquid Pipe (Swaged)
EVV22BS-V	1066	1434	483	430	1056	528	528	380 x 715	410 x 1190	Ø 22.22mm (7/8″)	Ø 12.7mm (1/2″)

Built Aussie Tough

The Advance systems is designed to last in our uniquely challenging climate. Powder coated to provide a tough durable finish that is highly resistant to corrosion, with a louvered grille, protecting it from the elements like direct sunlight and hail, or stray balls kicked by children playing in the backyard, as well as Hydrophilic blue fin coil coat providing additional protection to reduce corrosion and increase durability in high temperature and coastal environments. Advance is built Aussie tough.

Quiet Operation

We believe in keeping you comfortable inside and outside of your home. That’s why Advance uses the latest technologies such as inverter compressors, modulating EC indoor and outdoor fans and compressor jacket consisting of high performance acoustic cotton to absorb noise and vibration from the compressor, all designed to keep noise to a minimum.

Australian Made Comfort

Enjoy the peace of mind that comes with our Australian owned, designed, and manufactured product. Innovative controls, a thoughtfully designed indoor unit, intelligent zoning, and a robust vertical discharge outdoor unit are all tailored for the way Australians truly live.

R32 Refrigerant

ActronAir is environmentally aware and considers the potential impact of the refrigerants it uses. That’s why Advance utilises R32*, with a substantially lower Global Warming Potential than some alternative refrigerants, while enjoying the benefits of optimised energy efficiency.

Variable Fan Technology

Unlike other systems who typically can only ramp down to 60% at best, forcing you to pay for conditioned air you are not using, the Advance series can ramp its indoor fan speed down as low as 30%*, allowing it to deliver just the right amount of conditioned air – no more dump zones, no more soaring power bills.

Smarter Startup

In heating, the Advance indoor unit heats up to a preset temperature before the fan turns on, making sure warm air is delivered, avoiding cold drafts.

ActronAir Advance CRV22BT / EVV22BS-V 22.00kW Vertical Indoor Split Ducted Air Conditioner System | 3 Phase – Brochure
