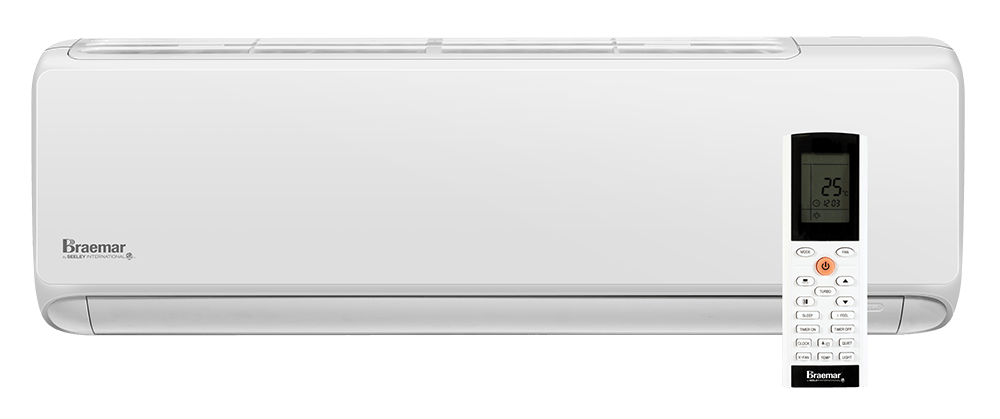

Braemar Austral-air ASHV25D1S | ACHV25D1S 2.7kW Indoor

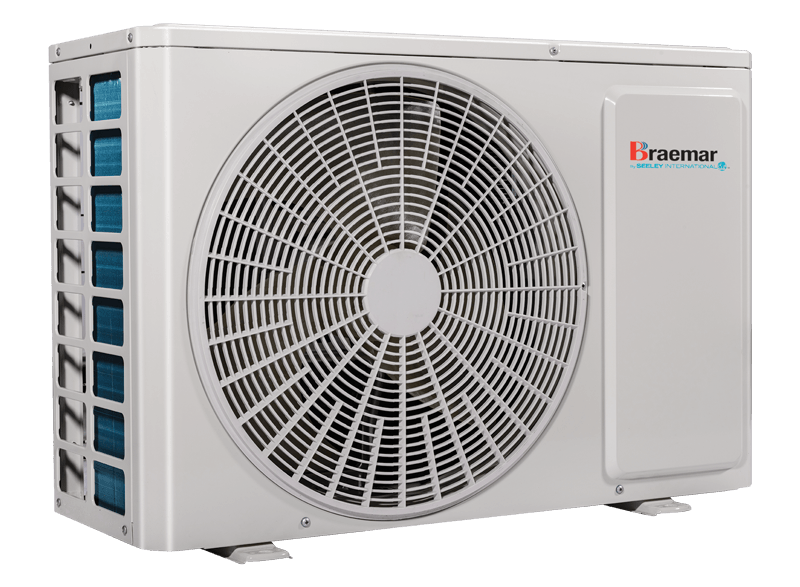

Braemar Austral-air ASHV25D1S | ACHV25D1S 2.7kW Outdoor
Air Conditioning Free Pickup Locations

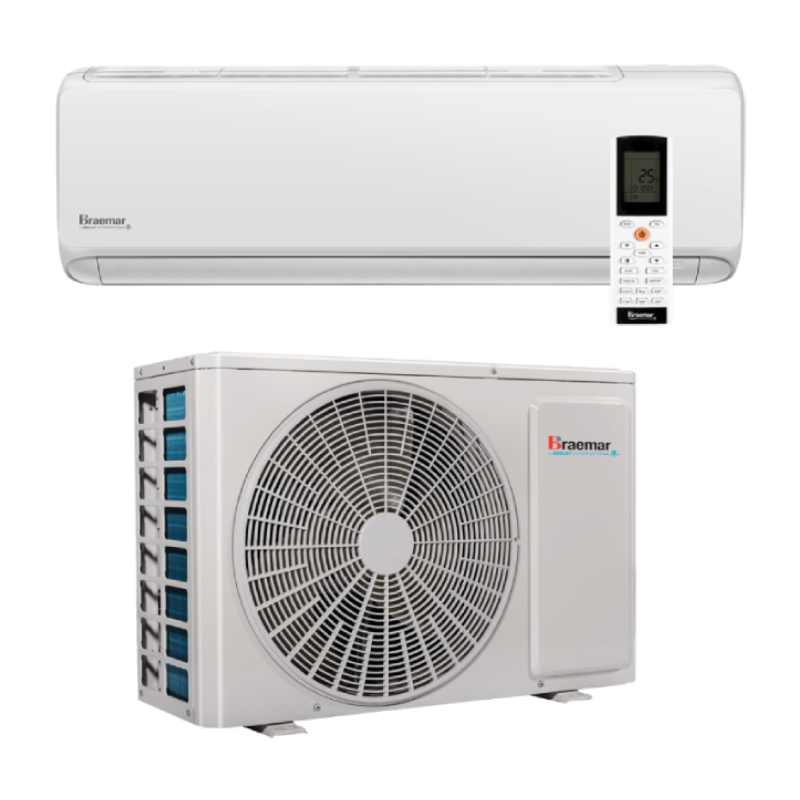

Braemar Austral-air ASHV25D1S | ACHV25D1S 2.7kW Wall-Mounted Inverter Split System
Braemar Austral-air ASHV25D1S | ACHV25D1S 2.7kW Indoor
Braemar Austral-air ASHV25D1S | ACHV25D1S 2.7kW Outdoor

Braemar Austral-air ASHV70D1S | ACHV70D1S 7.1kW Wall-Mounted Inverter Split System

SKU: ASHV70D1S / ACHV70D1S

Braemar Austral-air ASHV70D1S | ACHV70D1S 7.1kW Wall-Mounted Inverter Split System
Builtin Wi-Fi control | iFeel mode

  • 5 Year Comprehensive Warranty
  • DRED Ready (RJ45 connection)

$1,489.00

Or own it from $57.27 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > > >
Model
 Outdoor ACHV70D1S
Indoor ASHV70D1S
Capacity
 Cooling kW 7.10
Cooling Range kW 2.5 – 8.2
Heating kW 7.80
Heating Range kW 2.0 – 8.6
ZERL. Star Rating (Hot / Average / Cold)
 Cooling – 5.5 / 4.5 / 4.5
Heating – 3.5 / 2.5 / 2.0
AEER W/W 3.66
ACOP W/W 3.86
Air Flow l/s (m³/h) 375 (1350)
Electrical Data
 Power Supply V / Hz / Ph
Power Input (Nominal)
 Cooling kW 1.92
Heating kW 2.00
Minimum Circuit Breaker Outdoor A 20
Maximum Current Input A 12.5
Indoor Unit
 Sound Pressure Level (Max) dB (A) 53
Outline Dimension (W x D x H) mm 1078 x 246 x 333
Outdoor Unit
 Sound Pressure Level (Max) dB (A) 60
Outline Dimension (W x D x H) mm 958 x 402 x 660
Net Weight kg 42.0
Refrigerant R32
 Chargeless Length m 5
Additional Charge g/m
Pipe
Outer Diameter
 Liquid Pipe mm (Inch) Ø6.35 (1/4)
Gas Pipe mm (Inch) Ø12.70 (1/2)
Max Distance
 Height m 25
Length m 40
Ambient Temperature Range
 Cooling °C -15 ~ 52
Heating °C -15 ~ 24

Indoor Units

  • Standard white finish for contemporary look.
  • Available in 5 sizes for domestic and commercial use. Unit can be installed in small homes and large spaces.
  • Dry connection available for gate-card or remote on/off, great for schools or hotels.
  • Triple-layer anti-corrosion coating on printed
    circuit boards to protect electronics
Braemar Austral-air IDU front

Outdoor Units

  • Flexible outdoor placement long pipe runs (up to 40m).
  • Blue fin advanced protection to reduce corrosion and protect from the harsh Australian elements.
  • Slim design allows more flexibility in placing outdoor units.
  • DRED Demand Response Enabled Device capability is standard.
  • R32 refrigerant is more energy efficient and has 65% lower Global Warming Potential than R410A.

Additional Features

1. With use of optional wired wall controller.

Braemar Austral-air ASHV70D1S | ACHV70D1S 7.1kW Wall-Mounted Inverter Split System

Braemar Austral-air ASHV25D1S | ACHV25D1S 2.7kW Wall-Mounted Inverter Split System
$1,489.00

Braemar Austral-air ASHV70D1S | ACHV70D1S 7.1kW Wall-Mounted Inverter Split System
Braemar XK76 Wired Controller
$235.00

Braemar XK76 Wired Controller
$1,724.00 Bundle Price for Selected items

Description

7.1 kW Cooling
7.8 kW Heating

Builtin Wi-Fi control | iFeel mode
