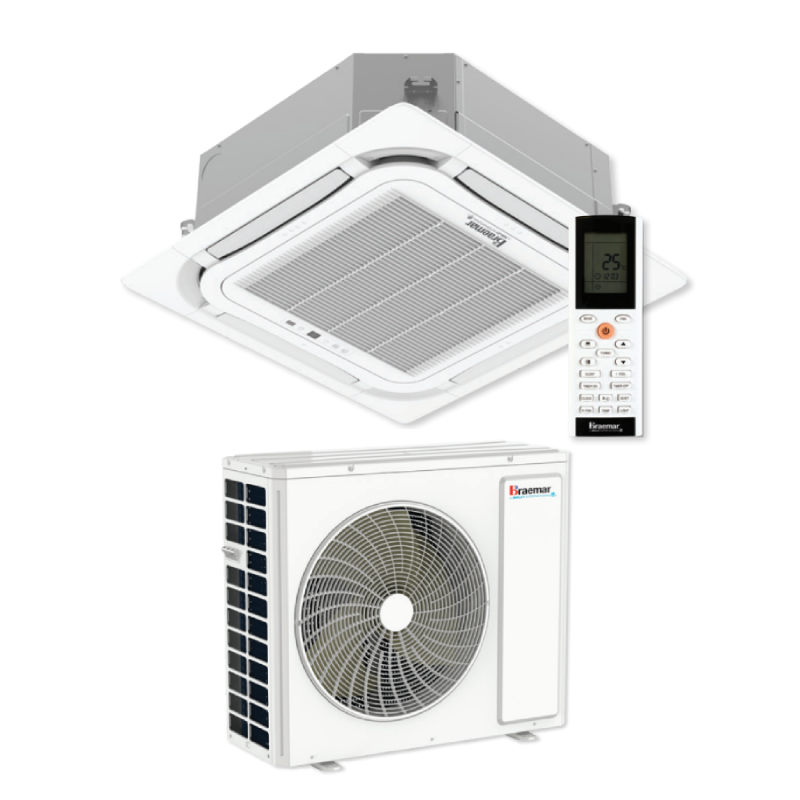

Braemar KBHA125D1S 12.5kW Inverter 8 Way Cassette Air Conditioner

SKU: KBHA125D1S / KCHA125D1B / TF06

Wireless Controller Included
Fascia TF06 included
5 Year Comprehensive Warranty

$3,429.00

Or own it from $131.88 weekly for 6 months*

Or pay in slices, no interest ever

9.5 x 15.88mm (3/8 x 5/8)> Braemar Air Conditioning> Braemar Cassette split system

Model				Outdoor	KCHA125D1B
				Indoor	KBHA125D1S
Cooling Capacity				kW	12.5
Cooling Capacity Range (Min ~ Max)				kW	3.60 ~ 14.00
Heating Capacity				kW	14
Heating Capacity Range (Min ~ Max)				kW	4.20 ~ 15.00
AEER				W/W	3.23
ACOP				W/W	3.32
Electrical Data	Power Supply			V / Hz / Ph	230 / 50 / 1
	Power Input (Nominal)		Cooling	kW	3.85
			Heating	kW	4.2
	Maximum Current Input			A	25
	Minimum Circuit Breaker Outdoor			A	32
Indoor Unit	Airflow (Max)			l/s (m3/h)	639 (2300)
	Sound Pressure Level (Max)			dB(A)	51
	Outline Dimension (W × D × H)			mm	840 x 840 x 290
	Net Weight			kg	25
Fascia Panel	Model			No.	TF06
	Outline Dimension (W × D × H)			mm	950 x 950 x 52
	Net Weight			kg	6.0
Outdoor Unit	Sound Pressure Level (Max)			dB(A)	59
	Outline Dimension (W × D × H)			mm	940 × 370 × 820
	Net Weight			kg	67
	Number of Fans			QTY	1
Refrigerant R32		Pre-Charge Length		m	15
		Additional Charge		g/m	25
Pipe	Outer Diameter	Liquid Pipe		mm (Inch)	Ø9.52 (3/8)
		Gas Pipe		mm (Inch)	Ø15.88 (5/8)
	Max Distance	Height		m	30
		Length		m	75
Ambient Temperature Operating Range		Cooling		°C	-15 ~ 52
		Heating		°C	-15 ~ 24

ZERL
Rated to the latest zoned energy rating label standard.
Efficient and quiet
Inverter technology and installer settings tailoring airflow, all ensuring maximum efficiency and quietest operation.
Condensate pump as standard
All single phase ducted inverters have the option of utilising the built in drain pump or the gravity drain. The condensate pump has a 1m lift, making it easier to get the condensate away from the indoor unit and to the nearest drain point. This provides flexible installation options.
Condensate pump as standard
All single phase ducted inverters have the option of utilising the built in drain pump or the gravity drain. The condensate pump has a 1m lift, making it easier to get the condensate away from the indoor unit and to the nearest drain point. This provides flexible installation options.
Home automation system adaptable
Built in Modbus adapter for third party controller compatibility. Remote on/off control available for applications that require connection to a Building Management System (BMS), or require a room card.

Braemar KBHA125D1S 12.5kW Inverter 8 Way Cassette Air Conditioner – Brochure

$3,429.00

Braemar KBHA125D1S 12.5kW Inverter 8 Way Cassette Air Conditioner

Remove

$269.00

Braemar XE7C-24/HC Wired Controller

Remove

$3,698.00 Bundle Price for Selected items

Description

12.5 kW Cooling
14.0 kW Heating

Efficient and quiet | Condensate pump as standard

What is ZERL and why does it matter?
ZERL stands for Zoned Energy Rating Label, which measures how efficiently an air conditioning system performs across different climate zones. It helps businesses choose systems that deliver reliable performance and lower energy costs.

Does Braemer Cassette Split Systems include a condensate pump?
Yes, the system includes a built-in condensate pump as standard. It also offers the option to use a gravity drain. This provides flexibility and makes installation easier in different setups.

Can the system integrate with smart controls or building systems?
Yes, the unit includes a built-in Modbus adapter for compatibility with third-party controllers. It also supports remote on/off functionality. This makes it suitable for Building Management Systems (BMS) and automated control applications.
