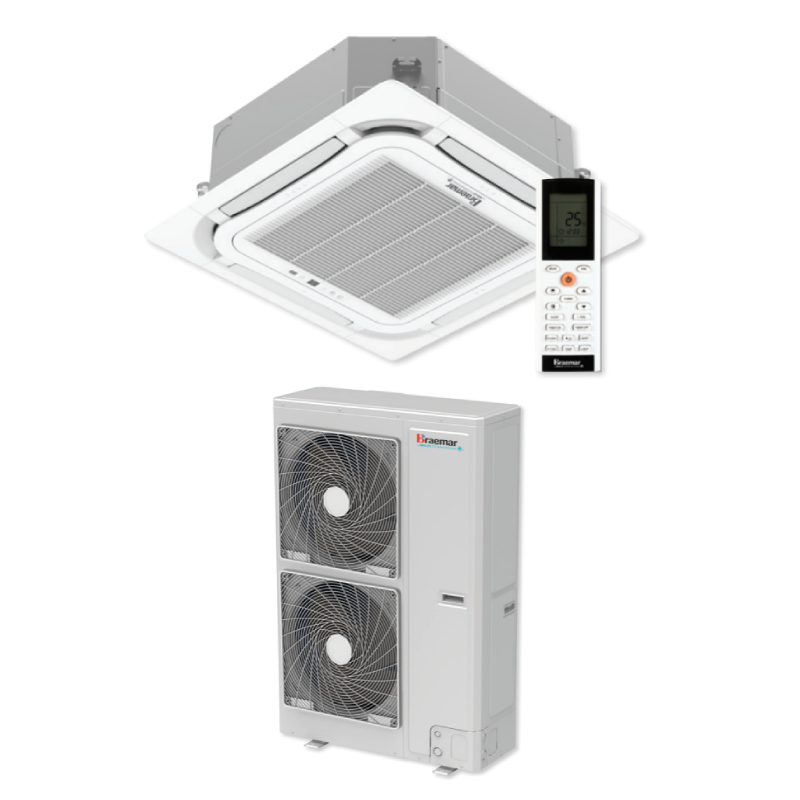

Braemar KBHA160D1S 14.0kW Inverter 8 Way Cassette Air Conditioner
Braemar KBHA160D1S 14.0kW Inverter 8 Way Cassette Air Conditioner
14.0 kW Cooling | 15.4 kW Heating
Indoor KBHA160D1S | Outdoor KCHA160D1B | Fascia TF06
Efficient and quiet | Condensate pump as standard | ZERL Energy Efficient | 8 Way 360-degree air supply design
- Wireless Controller Included
- Fascia TF06 included
- 5 Year Comprehensive Warranty
|
Model
|
Outdoor | KCHA160D1B | |||
| Indoor | KBHA160D1S | ||||
| Cooling Capacity | kW | 14 | |||
| Cooling Capacity Range (Min ~ Max) | kW | 4.20 ~ 16.00 | |||
| Heating Capacity | kW | 15.4 | |||
| Heating Capacity Range (Min ~ Max) | kW | 4.80 ~ 17.00 | |||
| AEER | W/W | 3.32 | |||
| ACOP | W/W | 3.28 | |||
|
Electrical Data
|
Power Supply | V / Hz / Ph | 230 / 50 / 1 | ||
|
Power Input (Nominal)
|
Cooling | kW | 4.18 | ||
| Heating | kW | 4.66 | |||
| Maximum Current Input | A | 32 | |||
| Minimum Circuit Breaker Outdoor | A | 40 | |||
|
Indoor Unit
|
Airflow (Max) | l/s (m3/h) | 639 (2300) | ||
| Sound Pressure Level (Max) | dB(A) | 51 | |||
| Outline Dimension (W × D × H) | mm | 840 x 840 x 290 | |||
| Net Weight | kg | 25 | |||
|
Fascia Panel
|
Model | No. | TF06 | ||
| Outline Dimension (W × D × H) | mm | 950 x 950 x 52 | |||
| Net Weight | kg | 6.0 | |||
|

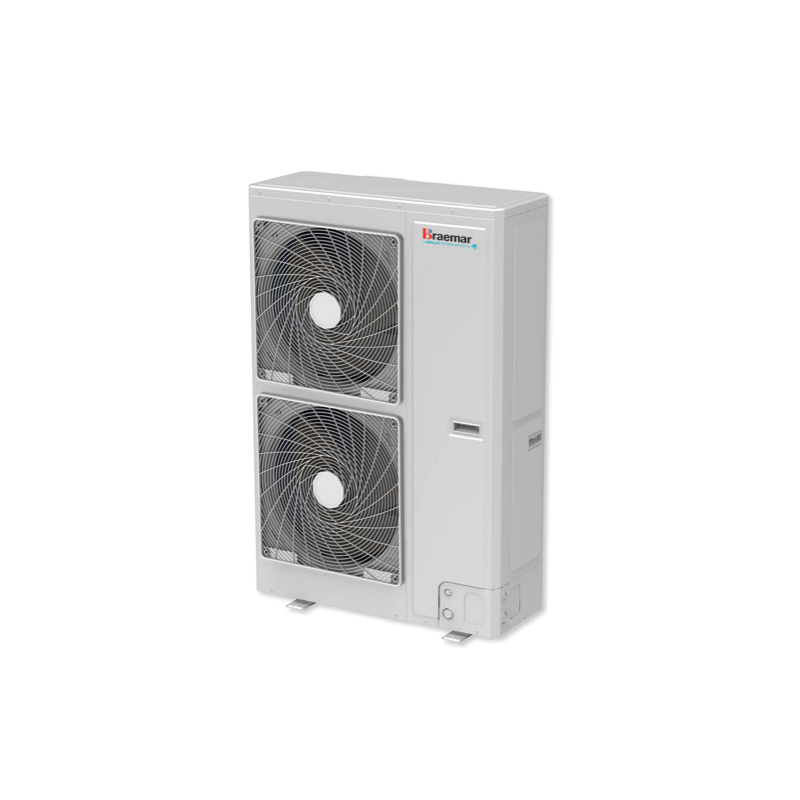

Outdoor Unit
|
Sound Pressure Level (Max) | dB(A) | 60 | ||
| Outline Dimension (W × D × H) | mm | 940 × 340 × 1260 | |||
| Net Weight | kg | 97 | |||
| Number of Fans | QTY | 2 | |||
|
Refrigerant R32
|
Pre-Charge Length | m | 15 | ||
| Additional Charge | g/m | 35 | |||
|
Pipe
|
Outer Diameter
|
Liquid Pipe | mm (Inch) | Ø9.52 (3/8) | |
| Gas Pipe | mm (Inch) | Ø15.88 (5/8) | |||
|
Max Distance
|
Height | m | 30 | ||
| Length | m | 75 | |||
|
Ambient Temperature Operating Range
|
Cooling | °C | -15 ~ 52 | ||
| Heating | °C | -15 ~ 24 | |||
- ZERL
Rated to the latest zoned energy rating label standard. - Efficient and quiet
Inverter technology and installer settings tailoring airflow, all ensuring maximum efficiency and quietest operation. - Condensate pump as standard
All single phase ducted inverters have the option of utilising the built in drain pump or the gravity drain. The condensate pump has a 1m lift, making it easier to get the condensate away from the indoor unit and to the nearest drain point. This provides flexible installation options. - Condensate pump as standard
All single phase ducted inverters have the option of utilising the built in drain pump or the gravity drain. The condensate pump has a 1m lift, making it easier to get the condensate away from the indoor unit and to the nearest drain point. This provides flexible installation options. - Home automation system adaptable
Built in Modbus adapter for third party controller compatibility. Remote on/off control available for applications that require connection to a Building Management System (BMS), or require a room card.
Description
14.0 kW Cooling
15.4 kW Heating
Efficient and quiet | Condensate pump as standard
What is ZERL and why does it matter?
ZERL stands for Zoned Energy Rating Label, which measures how efficiently an air conditioning system performs across different climate zones. It helps businesses choose systems that deliver reliable performance and lower energy costs.
Does Braemer Cassette Split Systems include a condensate pump?
Yes, the system includes a built-in condensate pump as standard. It also offers the option to use a gravity drain. This provides flexibility and makes installation easier in different setups.
Can the system integrate with smart controls or building systems?
Yes, the unit includes a built-in Modbus adapter for compatibility with third-party controllers. It also supports remote on/off functionality. This makes it suitable for Building Management Systems (BMS) and automated control applications.
