SALE

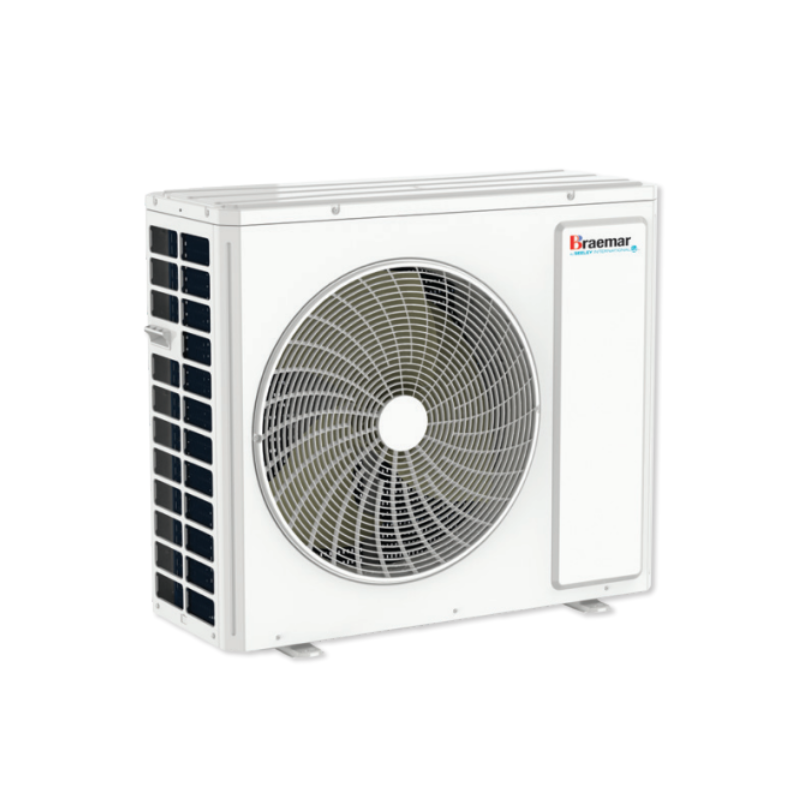

Braemar NCHV12D15B 12.3kW Multi Type Air Conditioner Outdoor Only

SKU: NCHV12D15B

Braemar NCHV12D15B 12.3kW Multi Type Air Conditioner Outdoor Only
Slim design | Black fin Protection | Flexible outdoor placement

$3,079.00

Model				Outdoor	NCHV12D15B
Cooling Capacity				kW	12.3
Cooling Capacity Range (Min ~ Max)				kW	2.6 – 15.2
Heating Capacity				kW	12.6
Heating Capacity Range (Min ~ Max)				kW	3.0 – 15.5
Max Indoor Capacity				kW	18.4
AEER				W/W	3.92
ACOP				W/W	3.89
Electrical Data	Power Supply			V / Hz / Ph	230 / 50 / 1
	Power Input (Nominal)		Cooling	kW	3.10
			Heating	kW	3.20
	Maximum Current Input			A	21.7
	Minimum Circuit Breaker Outdoor			A	25
Outdoor Unit	Maximum Drive IDU			No.	5
	Sound Pressure Level			dB(A)	60
	Outline Dimension (W × D × H)			mm	1020 x 427 x 826
	Net Weight			kg	73.0
Refrigerant R32		Chargeless Length		m	50
		Additional Charge		g/m	20
Pipe	Outer Diameter	Liquid Pipe		mm (Inch)	5 x Ø6.35 (1/4)
		Gas Pipe		mm (Inch)	5 x Ø9.52 (3/8)
	Maximum Distance	Height		m	25
		Length		m	30
		Sum of all Indoors		m	100
Ambient Temperature Operating Range			Cooling	°C	-15 ~ 52
			Heating	°C	-22 ~ 24

Flexible outdoor placement
Long pipe runs of up to 75m allows flexibility in placement of an outdoor unit.
Slim design Allows more flexibility in placing an outdoor unit. Easily fits into tighter spaces.
DRED as standard Demand response enabled device capability is standard.
Black fin The highest-rated and most corrosion resistant protective coating, enhancing longevity against the harsh Australian elements.
R32 refrigerant 68% lower Global Warming Potential and more energy efficient than R410A.
