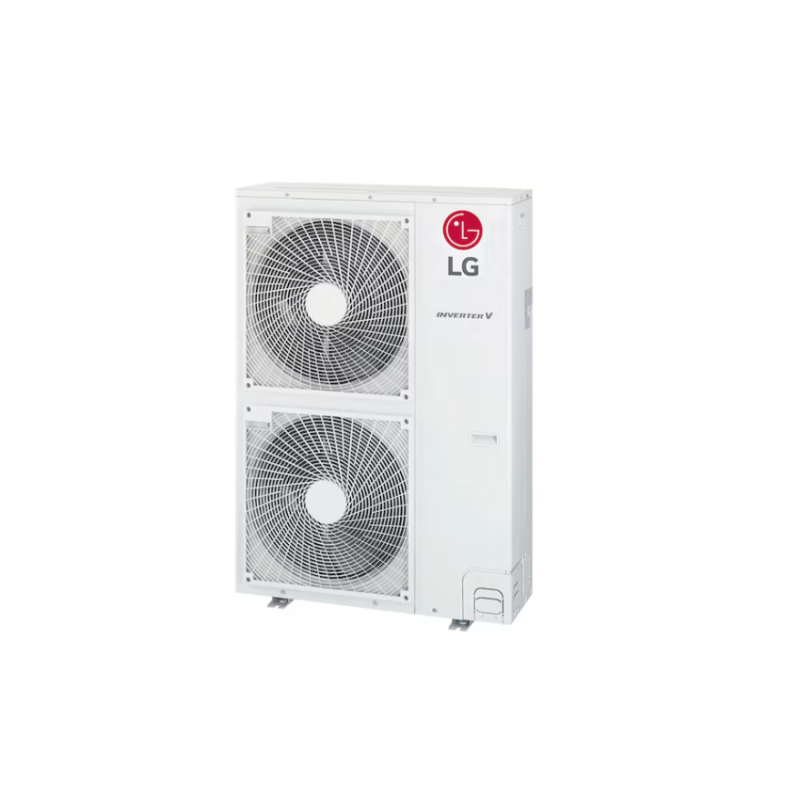

UU100WR3H-OUTDOOR

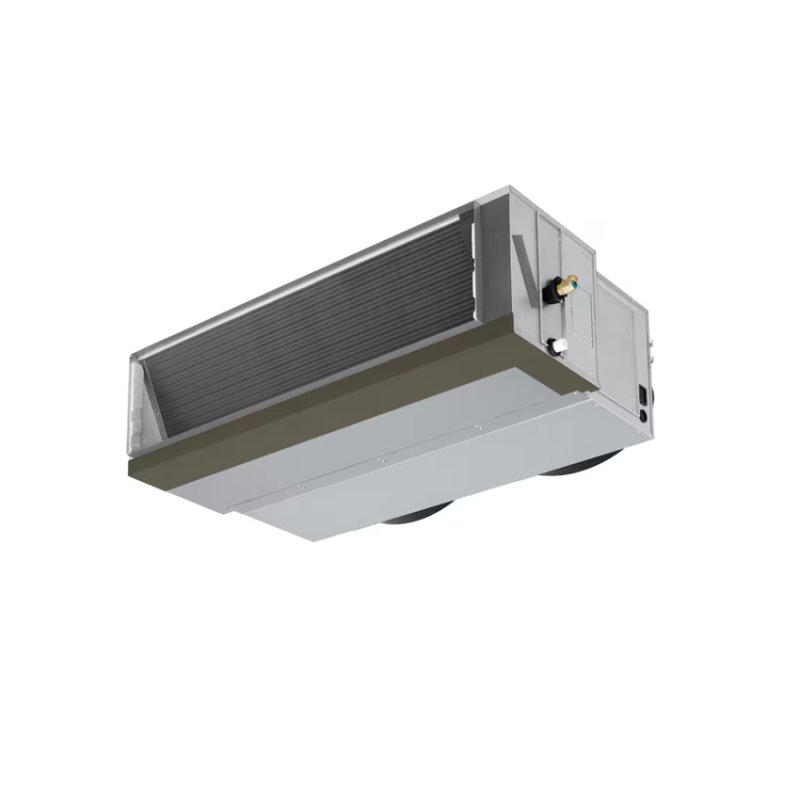

UHN100M3SH-INDOOR
Air Conditioning Free Pickup Locations
LG UHN100M3SH - UU100WR3H 10.5kW Splitable High Static Inverter Ducted High Efficiency Air Conditioner 1 Phase
UU100WR3H-OUTDOOR
UHN100M3SH-INDOOR

LG UHN100M3SH | UU100WR3H 10.5kW Splittable High Static Inverter Ducted High Efficiency Air Conditioner 1 Phase

SKU: UHN100M3SH / UU100WR3H / PREMTB101

10.0kW Cooling | 13.00kW Heating
LG UHN100M3SH | UU100WR3H 10.5kW Splittable High Static Inverter Ducted High Efficiency Air Conditioner 1 Phase
Indoor UHN100M3SH | Outdoor UU100WR3H Coming Soon

  • Wired Controller Included (PREMTB101)
  • Quiet Mode
  • Unoccupied Mode
  • High Efficiency

5 Years Manufacturer’s Warranty


$3,559.00

Or own it from $136.88 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > > >
ENERGY EFFICIENCY RATINGS
HSPF (Hot/Average/Cold)
TCSPF (Hot/Average/Cold)
4.731 / 4.258 / 3.616 4.992 / 4.494 / 4.519
FULL LOAD AMPS
Full Load Amps (A)
29
GENERAL
Indoor Unit Dimension_WxHxD(mm) indoor Unit Weight(kg) Outdoor Unit Dimension_WxHxD(mm) Outdoor Unit Weight(kg)
1250 x 360 x 820 47 950 x 1380 x 330 89
Refrigerant Type
R32
HEAT EXCHANGER
Corrosion Protection (Coating) Fin Type
Black 2 Wide Louver Plus
INDOOR UNIT
Dimensions Net (W × H × D) (mm) External static pressure High Mode_Factory Set Fan Air Flow Rate (H / M / L) (L/sec) Fan Motor Type
1250 x 360 x 820 69 Pa 783 / 700 / 566 BLDC
Net Weight (kg) Power Supply (V, Ø, Hz)
Sound Pressure Level Cooling (H / M / L) (dB(A))
47 220-240 V, 1, 50 Hz 45.0 / 44.0 / 42.0
OUTDOOR UNIT
Compressor Type Dimensions Net (W × H × D)(mm) Drain Pipe(Natural Drainage) (mm(inch)) Fan Motor Type
Inverter Scroll 950 x 1,380 x 330 25.4(1) / 19.4(3/4) BLDC
Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) (m (ft)) Net Weight (kg) Piping Connections Gas (Outer Dia.) (mm (inch))
Piping Connections Liquid (Outer Dia.) (mm (inch))
30 89 Φ15.88 (5/8) Φ9.52 (3/8)
Piping Length (Max.) (m) Power Supply (V , Ø , Hz) Pre-charge Length Refrigerant Type
85 220-240 V, 1, 50 Hz 20m R32
Sound Pressure Level Cooling (Rated) (dB(A))
Sound Pressure Level Heating (Rated) (dB(A))
51 52
POWER INPUT
Cooling (Rated) (kW) (T1)
Heating (Rated) (kW) (HVAC)
2.5 3
RATED CURRENT
Cooling (A) Heating (A)
14.9 16.9
RETURN AIR OPENING
Supply (W x H, Flange) (mm)
1148 x 292
SUPPLY AIR OPENING
Return (Oval) (mm)
2×400

High Efficiency R32 High Static Duct 10.5kW Set

Key Features

  • Zone Control of up to 8 zones with the LG premium controller
  • Wi-Fi Compatible (Dongle module sold separately)
  • Quiet Mode
  • Compact indoor unit helps make it easy to install in small spaces
  • 5 Year Parts and Labour Warranty
LG UHN100M3SH - UU100WR3H 10.5kW Splitable High Static Inverter Ducted High Efficiency Air Conditioner 1 Phase
$3,559.00

LG UHN100M3SH | UU100WR3H 10.5kW Splittable High Static Inverter Ducted High Efficiency Air Conditioner 1 Phase
INSULATED PAIRED COPPER PIPE 9.5 x 15.88mm (3/8 x 5/8) 20 Meters length
$429.00

INSULATED PAIRED COPPER PIPE 9.5mm x 15.88mm (3/8 x 5/8) 20 Meters length – Shipping Included
LG PREMTB101 LG Touch Pad Controller suited for Zoning with PBZC80 240V Zone Board
$449.00

LG PREMTB101 LG Touch Pad Controller suited for Zoning with PBZC80 240V Zone Board- 8 Zones
LG PREMTB101 LG Touch Pad Controller suited for Zoning with PBZC80 240V Zone Board
$449.00

LG PREMTB101 LG Touch Pad Controller suited for Zoning with PBZD80 24V Zone Board – 8 Zones (Requires Transformer 24V)
$4,886.00 Bundle Price for Selected items

Description

10.0kW Cooling
13.0kW Heating
