Mitsubishi Electric PUMY-P300YBMD-A.TH 33.5kW City Multi VRF Air Conditioners Outdoor Unit Only | 3 Phase

SKU: PUMY-P300YBMD-A.TH

33.5 kW Cooling | 37.5 kW Heating
Mitsubishi Electric PUMY-P300YBMD-A.TH 33.5kW City Multi VRF Air Conditioners Outdoor Unit Only | 3 Phase
Twin Fan Heat Pump VRF – Up to 8 Indoor Units – Part of a Multi VRF System
Multi Split Guide Compatibility and Capacity Tables
5 Years Manufacturer’s Warranty

$9,999.00

Or own it from $384.58 weekly for 6 months*

Or pay in slices, no interest ever

Mitsubishi Electric Air Conditioning> Mitsubishi Electric Multi Head Split Systems> Mitsubishi Electric VRF System> Multi-Head Split System Air Conditioners> MXZ & PUMY Outdoor Units> VRF system

Outdoor Unit				PUMY-P300 YBMD-A(-BS)
Power Source				YKMD2/YBMD: 3-phase 380-400-415 V, 50 Hz; 3-phase 380 V, 60 Hz
	Capacity [Nominal]*1, 10		kW	33.5
	Power Input		kW	8.17
Cooling	Current Input EER Temp. IndoorRange Outdoor Capacity [Nominal]*2, 11		A W.B. D.B.	4.1

				15°C ~ 24°C
				-5°C ~ 52°C*4, 5
			kW	37.5
	Power Input		kW	7.36
Heating	Current Input COP		A	12.02 – 11.42 – 11.01/12.02
				5.1
	Temp. Indoor		W.B.	15°C ~ 27°C
	Range	Outdoor	D.B.	-20°C ~ 15°C
		Total Capacity		50% ~ 130% of outdoor unit capacity
Indoor Unit Connectable Model/Quantity Sound Pressure Level [Measured in Anechoic Room] dBA				P15-P250/25 (branch box P25 – P71/12)
				60/62
Piping [Liquid/Gas]			mm	ø12.70/ø25.40
Type x Quantity				Propeller fan x 2
Airflow Rate			m3/min	187 (cooling)/197 (heating)
			L/s	3117 (cooling)/3283 (heating)
Fan
	Motor Output		kW	0.375 x 2
	External Static Pressure Type x Quantity		Pa	0/30*8
				Scroll hermetic compressor x 1
Compressor Starting Method Motor Output External Finish External Dimension [HxWxD] Refrigerant Type x Original Charge Net Weight Heat Exchanger			kW mm kg	Inverter
				7.23
				Galvanised steel sheet Munsell no. 3Y 7.8/1.1
				1662 x 1050 x 460 (+45)
				R410A x 9.3 kg
				192*9

Optional Parts				Air protection guide: PAC-SK21AG-E Air outlet guide: PAC-SK22SG-E

Guaranteed Operating Range

With the harsh Australian environment, it is comforting to know that your air conditioner will continue to operate with a guaranteed operating range of -5°C to
se 52°C*. This means your air conditioner will continue to operate when you need it most.
*The capacity will be reduced when operating the unit at the extreme operating temperature.

High Energy Efficiency

Featuring an inverter that utilises cutting edge technologies, PUMY-P250/300YBMD-A units achieve high energy efficiency ratio (EER) of 4.10 (P250 & P300) and coefficient of performance (COP) of 5.20 (P250)/5.10 (P300).

Adjustable Fan External Static Pressure*

The fan external static pressure can be adjusted up to 30 Pa to allow installation on balconies or spaces near louvres. This gives more flexibility in installation location where it may not be possible before.
*Noise level will increase when using this function.

Quiet Mode

PUMY-P250/300YBMD-A units have three quiet mode settings which can reduce the noise level down by
10 dBA*. This allows the unit to operate at night in a noise sensitive residential application.
*Measured in anechoic chamber.
*Capacity will be reduced depending on the quiet mode setting selected. *PAC-SC36NA-E is required to activate low noise mode.

High Energy Efficiency

New PUMY-P250/300YBM units feature an advanced inverter that utilises cutting edge technologies to achieve a high energy efficiency of EER 4.10 (P250/300) and COP 5.20 (P250) / 5.10 (P300).

External Static Pressure of 30 Pa

The installation location is flexible thanks to its 30Pa static pressure. An external static pressure of 30Pa allows the outdoor unit to be installed on balconies in high-rise buildings or spaces near louvres. *Refer to the installation manual for more details.

Extended operating range in cooling up to 52°C

The outdoor unit can now continue operating and deliver cooling at ambient temperature of up to 52°C without any interruptions allowing installation in areas where discharge air may be prone to stagnation.

Extended Pipe Runs

The twin fan PUMY-P Series has an extended maximum pipe run of 300 m for convenience of unit location, compared to PUMY-SP Series.

Maximum piping lengths for PUMY-P200YKMD is 150 m. For PUMY-P250/300YBM maximum piping lengths without the BC box is 310 m and when using the BC boxes is 240 m

Outdoor Unit Fan Design

The diameter of the opening for the fan in the outdoor unit has been enlarged from 490 mm to 550 mm.

Adaptable and Stylish

Up to 9/10/12/30 indoor units can be connected and operated simultaneously, with a selection of different types of indoor units. You can design an air conditioning system to suit many individual applications.

Inverter Control

An Inverter driven system that is operating at partial load has energy efficiency significantly higher than that of a standard fixed-speed compressor.

Wi-Fi Control*1

Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.

*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the App downloaded on your smartphone or tablet with the latest operating system available.

*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.

*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

Optional PAR-40MAA Wall mounted controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days. Perfect for the busy home and office or retail store.

Demand Response Capable

Demand Response mode is activated in response to signals sent from the power distributor at times when it is necessary to reduce peak demand.

Mitsubishi Electric PUMY-P300YBMD-A.TH 33.5kW City Multi VRF Air Conditioners Outdoor Unit Only | 3 Phase – Brochure

PUMY Series

Side Flow Outdoor Unit

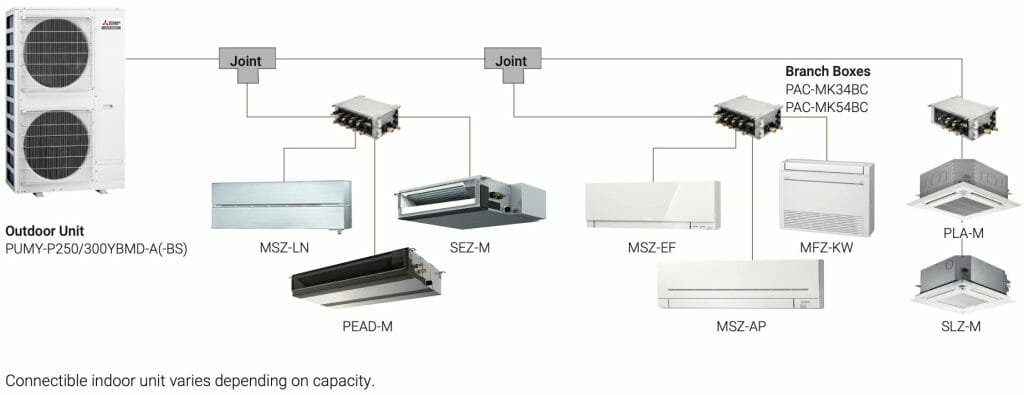

PUMY-P250/300 models have an impressive variety of design options allowing connections of up to 3 branch boxes with over 100 different indoor unit models to choose from. This opens up new possibilities for air conditioning applications from residential apartments and houses, to commercial shops and offices.

Mitsubishi Electric PUMY Series meets the needs of homes, apartments and commercial buildings with the ability to select from a range of indoor units to best match your requirements.
