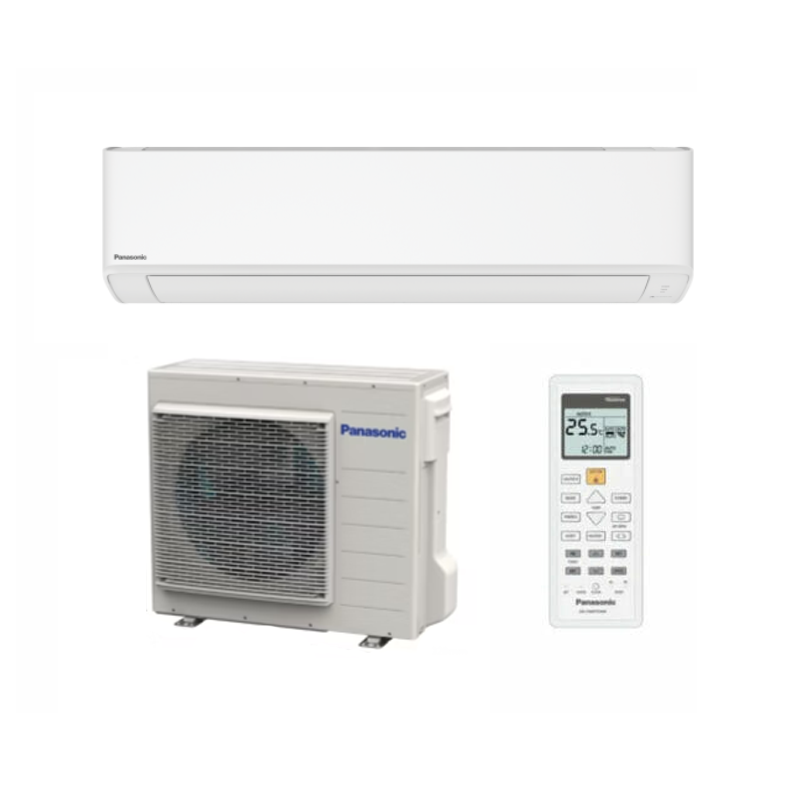

Panasonic CS/CU-RZ80YKR 8.0kW RZ Series Reverse Cycle Split System Air Conditioner
Panasonic CS/CU-RZ80YKR 8.0kW RZ Series Reverse Cycle Split System Air Conditioner
Includes Indoor CS-RZ80AYKR | Outdoor CU-RZ80YKR
Includes Wireless Controller | Anti Bacterial Filter | ECO Mode with A.I. Control
5 Years Manufacturer’s Warranty
Price range: $2,465.00 through $2,689.00
| CS/CU-RZ80YKR | |
| Indoor Unit | CS-RZ80YKR |
| Outdoor Unit | CU-RZ80YKR |
| Cooling Capacity (min-max) (kW) | 8.00 (2.30-9.00) kW |
| Heating Capacity (min-max) (kW) | 9.00 (2.20-11.60) kW |
| Cooling Capacity (min-max) (Btu/h) | 27,300 (7,840-30,700) Btu/h |
| Heating Capacity (min-max) (Btu/h) | 30,700 (7,500-39,600) Btu/h |
| Cooling Indoor Air Flow (L/s) | 367 L/s |
| Heating Indoor Air Flow (L/s) | 377 L/s |
| Dehumid (L/h) | 4.70 L/h |
| Cooling Running Current (A) | 10.10 A |
| Heating Running Current (A) | 9.80 A |
| Max Current (A) | 15.00 A |
| Cooling Power Input (min-max) (kW) | 2.39 (0.46-3.03) kW |
| Heating Power Input (min-max) (kW) | 2.34 (0.43-3.42) kW |
| Cooling AEER/EER | 3.34 W/W / 3.35 W/W |
| Heating ACOP/COP | 3.83 W/W / 3.85 W/W |
| Star Rating – Cooling (Hot Climate) | 3.5 TCSPF |
| Star Rating – Cooling (Average Climate) | 3.5 TCSPF |
| Star Rating – Cooling (Cold Climate) | 3.5 TCSPF |
| Star Rating – Heating (Hot Climate) | 3.5 HSPF |
| Star Rating – Heating (Average Climate) | 2.5 HSPF |
| Star Rating – Heating (Cold Climate) | 2.0 HSPF |
| Indoor Unit Sound Pressure Noise Level (Cooling) (H / L / Q-Lo) |
51/38/35 dB(A) *Sound pressure level specification is measured according to JIS C9612.
|
| Indoor Unit Sound Pressure Noise Level (Heating) (H / L / Q-Lo) |
50/38/35 dB(A) *Sound pressure level specification is measured according to JIS C9612.
|
| Indoor Unit Sound Power Noise Level (Cooling) (H / L / Q-Lo) | 67/54/51 dB(A) |
| Indoor Unit Sound Power Noise Level (Heating) (H / L / Q-Lo) | 66/54/51 dB(A) |
| Indoor Unit Dimensions (H x W x D) (mm) |
295 mm x 1,040 mm x 244 mm
|
| Indoor Unit Net Weight | 13 kg |
| Outdoor Unit Sound Pressure Noise Level (Cooling) (H / Q-Lo) |
55/50 dB(A) *Sound pressure level specification is measured according to JIS C9612.
|
| Outdoor Unit Sound Pressure Noise Level (Heating) (H / Q-Lo) |
55/50 dB(A) *Sound pressure level specification is measured according to JIS C9612.
|
| Outdoor Unit Sound Power Noise Level (Cooling) (H / Q-Lo) | 69/64 dB(A) |
| Outdoor Unit Sound Power Noise Level (Heating) (H / Q-Lo) | 69/64 dB(A) |
| Outdoor Unit Dimensions (H x W x D) |
795 mm x 875 mm x 320 mm
|
| Outdoor Unit Net Weight | 51 kg |
| Refrigerant Type | R32 |
| Refrigerant Pipe Diameter (Liquid Side) | ø 6.35 mm (1/4 inch) |
| Refrigerant Pipe Diameter (Gas Side) | ø 15.88 mm (5/8 inch) |
| Pipe Extension Length (min-max) | 3 m ~ 30 m |
| Maximum Elevation Length | 20 m |
| Pipe Length for Additional Refrigerant Gas | 10 m |
| Pipe Extension (Additional Refrigerant Gas*) | 25 g/m |
| Power Supply | Outdoor |
| Outdoor Unit Operating Range (Cooling) | -10°C ~ +46°C |
| Outdoor Unit Operating Range (Heating) | -15°C ~ +24°C |
| POWERFUL Mode | Yes |
| ECO Mode with A.I. | Yes |
| Inverter Control | Yes |
| Sleep Mode | Yes |
| Quiet Mode | Yes |
| Fan Mode | Yes |
| Soft Dry Operation Mode | Yes |
| Hot Start Control | Yes |
| Auto Changeover (Inverter) | Yes |
| Personal Airflow Creation | Yes |
| Manual Horizontal Airflow Direction Control | No |
| Airflow Direction Control (Up & Down) | No |
| Anti-Bacterial Filter | Yes |
| Odour Removing Function | Yes |
| Removable Washable Panel | Yes |
| 24-Hour Dual ON & OFF Real Setting Timer | Yes |
| Demand Response Enabling Device (DRED) | Yes |
| LCD Wireless Remote Control | Yes |
| Wi-Fi |
Optional (Network adaptor required)
|
| Wired Remote Control | Yes (Optional) |
| Random Auto Restart | Yes (32 Restart Patterns) |
| Blue Fin Condenser | Yes |
| Long Piping (max.) | 30 m |
| Top Panel Maintenance Access | Yes |
| Self-Diagnostic Function | Yes |
Stay Warm/Cold Any Season All Year Long
The Panasonic RZ series wall split offers convenient comfort for every space, keeping you cool during the warm season and letting you enjoy warmth during the cooler season. Ensuring everyone’s comfortable all year round.
Filters Bacteria and Viruses for Clean, Healthy Air
² Test Organisation: Osaka Prefectural Institute of Public Health •Test Report No: 313360397 •Virus: Influenza A (H3N2) Hong Kong
³ Test Organisation: Shinshu University •Allergen: Cedar Pollen Allergen Cry j1
⁴ Test Organisation: Boken Quality Evaluation Institute •Test Report No: 0003663 •Mould: Aspergillus niger ATCC 6275
Connect & Control Your Air Conditioners Anywhere, Anytime
Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.
Advanced Smart Control with Voice Assistant Compatibility
Panasonic Comfort Cloud App also connects to leading voice assistants, granting you effortless control over your comfort. Optimise your air conditioning experience without lifting a finger – simply give a voice command to adjust settings and create the perfect comfort for your home.
Intelligently Balances Energy Savings and Comfort
Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.
Wide Cooling Capacity Range
With indoor cooling capacity range up to 9.5kW, Panasonic RZ series air conditioners offers the flexibility to scale cooling operation according to different needs and preferences, even for large spaces.
Comfort Cooling Environment for Your Needs
Faster and Further Airflow with AEROWINGS
Instant Powerful Cooling with a Push of a Button
Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.
Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.
Built Tough to Last
Harsh coastal environments, with salty air, dust, wind, and rain, can damage and reduce the performance of the outdoor unit. Panasonic units are built to endure these elements, having undergone rigorous durability testing in extreme temperatures, high humidity, and low temperatures to ensure they continue to operate flawlessly. Enjoy continuous comfort regardless of climate.
- Anti-bacterial filter delivers quality indoor air to your spaces
- Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)
- AEROWINGS concentrates cool air for further and faster airflow across the room
- POWERFUL Mode lets you enjoy instant powerful cooling during start-up
- ECO Mode with A.I. control intelligently balances energy savings and comfort
- Energy efficiency with Inverter technology and R32 refrigerant
Description
8.0 kW Cooling
9.0 kW Heating
Anti-Bacterial Filter | ECO MODE WITH A.I.
