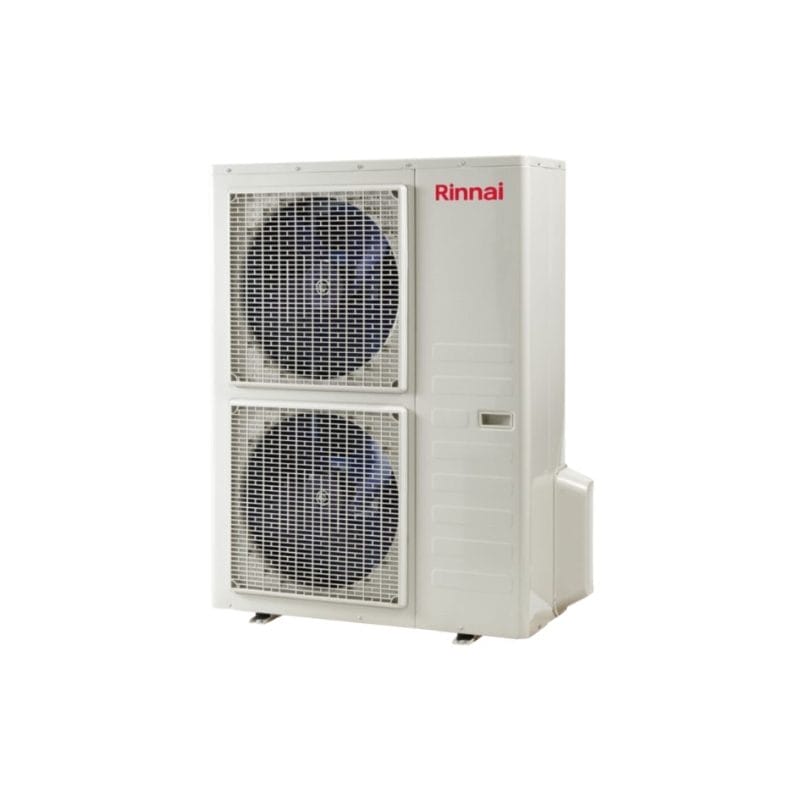

Rinnai MON6H18B 17.5kW Multi System Air Conditioner Outdoor Only
17.5 kW Cooling | 20.0 kW Heating | 1 Phase
Rinnai MON6H18B 17.5kW Multi System Air Conditioner Outdoor Only
6 Max Connectable Indoors Units
Combination Table | Part of a multi system
7 Years Manufacturer’s Warranty
| Multi Outdoor Unit | MON6H18B | ||
| Number of connected Indoor Units | Qty | 6 | |
| Power Supply (To Outdoor Unit) | V-Ph-Hz | 220~240-1-50 | |
|
Cooling
|
Rated Capacity (Range) | kW | 17.5 (4.57~18.5) |
| Rated Input Power | kW | 5.0 | |
| Rated Input Current | A | 22.80 | |
| AEER | W/W | 3.45 | |
|
Heating
|
Rated Capacity (Range) | kW | 20.0 (4.98~20.7) |
| Rated Input Power | W | 5.10 | |
| Rated Input Current | A | 24.00 | |
| ACOP | W/W | 3.87 | |
| Maximum Input Current | A | 33 | |
| Recommended Circuit Breaker | A | 40 | |
| Compressor | Type | Inverter Twin Rotary | |
| Sound Power Level | dB(A) | 71 | |
|
Dimensions
|
Net (W x D x H) | mm | 952 x 415 x 1333 |
| Gross (W x D x H) | mm | 1095 x 495 x 1480 | |
| Net / Gross Weight | kg | 110.6 / 124.9 | |
| Refrigerant Type | R32 | ||
|
Refrigerant Piping
|
Connection Size: Liquid Line | mm | 6 x Φ6.35 |
| Connection Size: Gas | mm | 4 xΦ9.52 + 2 x Φ12.7 | |
| Maximum Total System Pipe Length | m | 80 | |
| Pre-Charged Length | m | 45 | |
| Maximum Length Per Indoor Unit | m | 35 | |
| Maximum Vertical Separation Outdoor Unit ABOVE Indoor Unit | m | 10 | |
| Maximum Vertical Separation Outdoor Unit BELOW Indoor Unit | m | 15 | |
| Maximum Height Difference Between Indoor Units | m | 10 | |
| Factory Precharge | g | 4300 | |
| Ambient Temperature Limits | Cooling | °C | -15~50 |
| Ambient Temperature Limits | Heating | °C | -25~30 |
Rinnai Multi Split Systems Outdoor Units are designed for powerful performance, durability, and energy efficiency. Built to withstand harsh Australian conditions, these units provide reliable cooling and heating for residential and commercial spaces. With advanced inverter technology, they ensure optimal temperature control while reducing energy consumption. Enjoy quiet operation, eco-friendly refrigerants, and seamless integration with Rinnai indoor systems for year-round comfort.
Description
17.5 kW Cooling
20.0 kW Heating
6 Max Connectable Indoors Units
