Braemar KDHA125D1S 12.5kW High Static Ducted system Air Conditioner 1 Phase
Braemar KDHA125D1S 12.5kW High Static Ducted system Air Conditioner 1 Phase

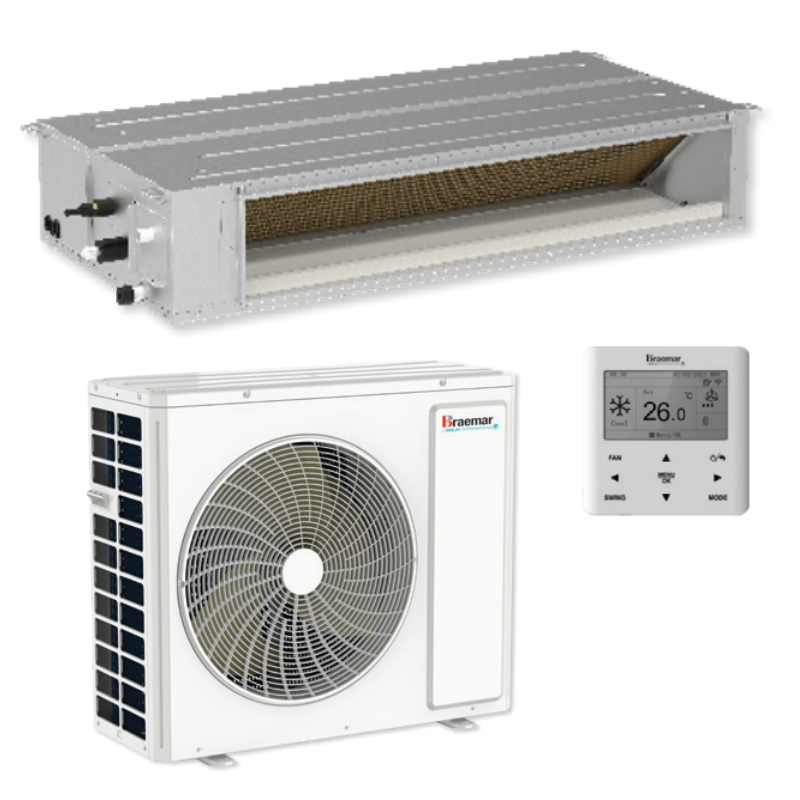

Includes Indoor KDHA125D1S | Outdoor KCHA125D1B | Wall Controller with wifi XE7C-24/HC
12.5 kW Cooling | 14.0 kW Heating
Efficient and quiet | Power saving | Gold Fin Protection (Indoor) | Black Fin Protection (Outdoor)
Optional Zone Controller LE60-13/GH-KIT-B 4 Zone KIT Complete Package.
- 5 Year Comprehensive Warranty
- DRED Ready (RJ45 connection)
|
Model
|
Outdoor | KCHA125D1B | |||
| Indoor | KDHA125D1S | ||||
| Cooling Capacity | kW | 12.5 | |||
| Cooling Capacity Range (Min ~ Max) | kW | 3.6 ~ 14.0 | |||
| Heating Capacity | kW | 14.0 | |||
| Heating Capacity Range (Min ~ Max) | kW | 4.20 ~ 15.0 | |||
|
ZERL. Star Rating (Hot / Average / Cold)
|
Cooling | – | 4.0 / 3.5 / 4.0 | ||
| Heating | – | 3.5 / 2.5 / 2.0 | |||
| AEER | W/W | 3.38 | |||
| ACOP | W/W | 3.79 | |||
|
Electrical Data
|
Power Supply | V / Hz / Ph | 230 / 50 / 1 | ||
|
Power Input (Nominal)
|
Cooling | kW | 230 / 50 / 1 | ||
| Heating | kW | 3.68 | |||
| Maximum Current Input | A | 25.0 | |||
| Minimum Circuit Breaker Outdoor | A | 32 | |||
|
Indoor Unit
|
Airflow (Max) | l/s (m3/h) | 778 (2800) | ||
| ESP Nominal Range | Pa | 0 ~ 200 | |||
| Sound Pressure Level (Max) | dB(A) | 42 | |||
| Outline Dimension (W × D × H) | mm | 1350 x 720 x 360 | |||
| Net Weight | kg | 57 | |||
|
Supply Air Outlet
|
Height | mm | 190 | ||
| Width | mm | 850 | |||
|
Return Air Inlet
|
Height | mm | 326 | ||
| Width | mm | 1170 | |||
|
Outdoor Unit
|
Sound Pressure Level (Max) | dB(A) | 59 | ||
| Outline Dimension (W × D × H) | mm | 940 × 370 × 820 | |||
| Net Weight | kg | 67 | |||
| Number of Fans | QTY | 1 | |||
|
Refrigerant R32
|
Pre-Charge Length | m | 15 | ||
| Additional Charge | g/m | 25 | |||
|
Pipe
|
Outer Diameter
|
Liquid Pipe | mm (Inch) | Ø9.52 (3/8) | |
| Gas Pipe | mm (Inch) | Ø15.88 (5/8) | |||
|
Max Distance
|
Height | m | 30 | ||
| Length | m | 75 | |||
|
Ambient Temperature Operating Range
|
Cooling | °C | -15 ~ 52 | ||
| Heating | °C | -15 ~ 24 | |||
Indoor unit
- Gold fin
Protective coating on the indoor heat exchanger coil for greater durability. - ZERL
Rated to the latest zoned energy rating label standard. - Efficient and quiet
Inverter technology, optional motion sensor and installer settings tailoring airflow, all ensuring maximum efficiency and the quietest operation. - Easy and flexible installation
Compact and adaptable room positioning allows for flexible installation choices. Indoor unit is splittable 12, 14 & 16kW. - Low profile design
Visually appealing, discreet and low profile unit to deliver conditioned air via ducting and suitable ceiling or wall grilles. - Condensate pump as standard
All single phase ducted inverters have the option of utilising the built in drain pump or the gravity drain. The condensate pump has a 1m lift, making it easier to get the condensate away from the indoor unit and to the nearest drain point. This provides flexible installation options. - Home automation system adaptable
Built in Modbus adapter for third party controller compatibility. Remote on/off control available for applications that require connection to a Building Management System (BMS), or require a room card.

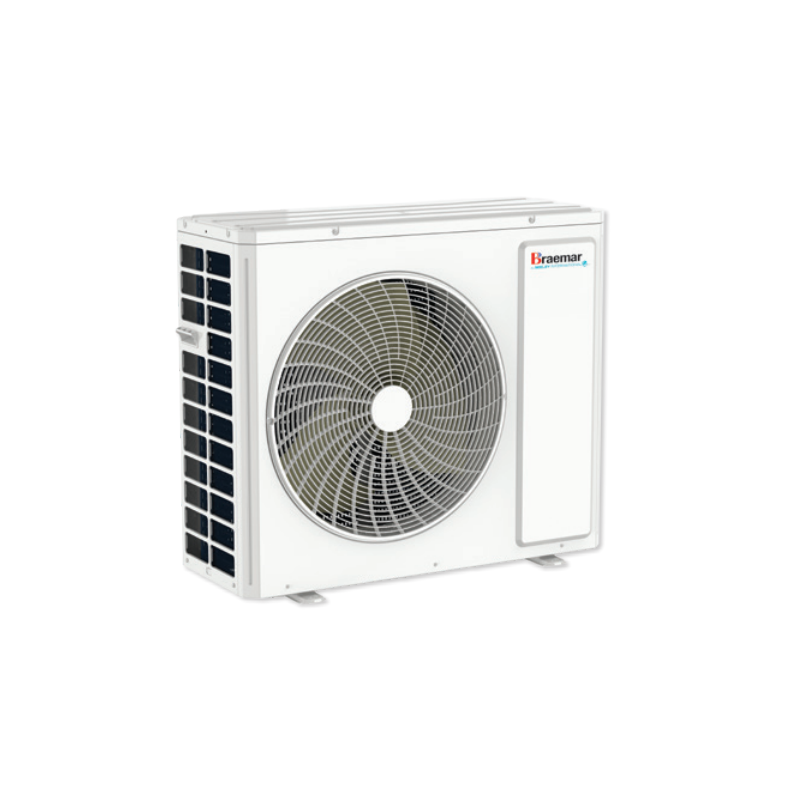

Outdoor unit
- Black fin
The highest-rated and most corrosion resistant protective coating, enhancing longevity against the harsh Australian elements. - Flexible outdoor placement
Long pipe runs of up to 75m allows flexibility in placement of an outdoor unit. - Slim design
Allows more flexibility in placing an outdoor unit. Easily fits into tighter spaces. - DRED as standard
Demand response enabled device capability is standard.
- R32 refrigerant
68% lower Global Warming Potential and more energy efficient than R410A.
Description
12.5 kW Cooling
14.0 kW Heating
Quiet | Power saving | Inverter
Is a Braemar ducted system energy efficient?
Yes. Braemar systems use advanced inverter technology, zoning capabilities, and motion sensor options to optimise energy use. They also meet the latest Zoned Energy Rating Label (ZERL) standards, making them highly efficient for Australian homes.
What makes Braemar ducted systems quiet?
These systems are designed with inverter compressors and adjustable airflow settings that reduce operational noise. The indoor unit is also installed in the ceiling or out of sight, further minimising sound within living spaces.
What is the benefit of the gold fin coating on the indoor unit?
The gold fin coating protects the heat exchanger from corrosion, moisture, and dust buildup. This improves durability, maintains efficiency, and extends the lifespan of the system.
Are Braemar ducted systems suitable for Australian conditions?
Yes. The outdoor unit features a corrosion-resistant black fin coating, making it ideal for harsh Australian climates, including coastal and high-humidity areas.
