Braemar SDHS20D1S 20.4kW High Static Ducted system Air Conditioner 3 Phase
Braemar SDHS20D1S 20.4kW High Static Ducted system Air Conditioner 3 Phase

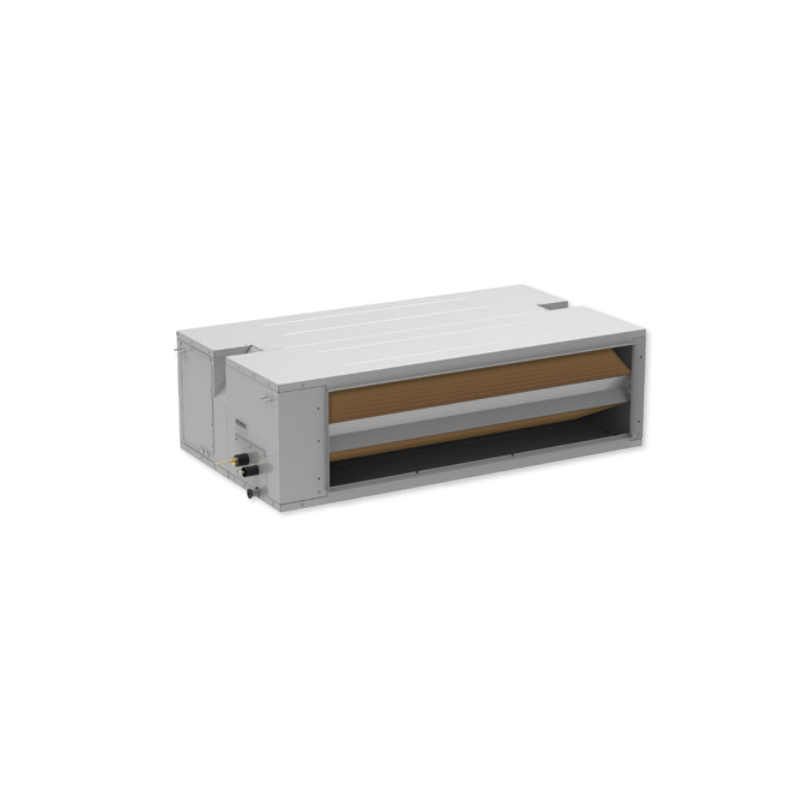

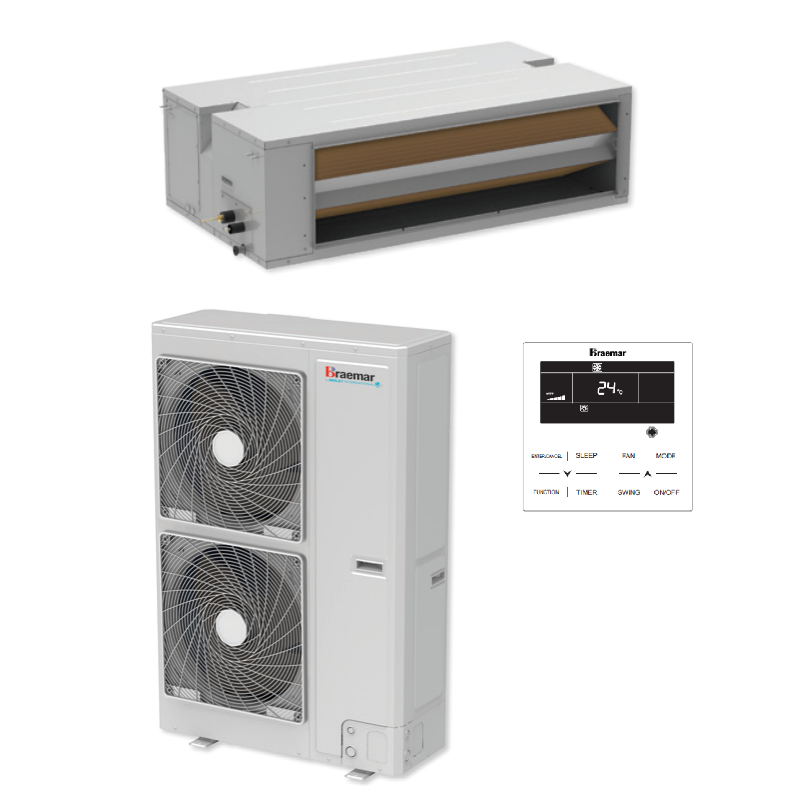

Includes Indoor SDHS20D1S | Outdoor SCHS20D3B | Wall Controller XK46
20.4 kW Cooling | 22.5 kW Heating | 3 Phase
Efficient and quiet | Power saving | R410A
Optional Zone Controller LE60-13/GH-KIT-B 4 Zone KIT Complete Package.
- 5 Year Comprehensive Warranty
- DRED Ready (RJ45 connection)
|
Model
|
Outdoor | SCHS20D3B | ||
| Indoor | SDHS20D1S | |||
| Cooling Capacity | kW | 20.40 | ||
| Cooling Capacity Range (Min ~ Max) | kW | 13.50 ~ 25.30 | ||
| Heating Capacity | kW | 22.50 | ||
| Heating Capacity 2 Range (Min ~ Max) | kW | 14.10 ~ 26.40 | ||
| AEER | W/W | 3.16 | ||
| ACOP | W/W | 3.54 | ||
|
Electrical Data
|
Power Supply | V / Hz / Ph | 380-415 / 50 / 3 | |
|
Power Input (Nominal)
|
Cooling | kW | 6.38 | |
| Heating | kW | 6.28 | ||
| Rated Current | A | 21.40 | ||
| Rated Load Amperage (RLA) | A | 15.00 | ||
|
Indoor Unit
|
Rated Airflow | l/s | 1330 | |
| ESP Nominal (Min ~ Max) | Pa | 0 ~ 250 | ||
| Drain Pump | Y/N | No | ||
| Sound Pressure (Max) | dB(A) | 53 | ||
| Outline Dimension (W × D × H) | mm | 1520 x 840 x 450 | ||
| Net Weight | kg | 110 | ||
| Supply Outlet (W x H) | mm | 962 x 262 | ||
| Return Inlet (W x H) | mm | 1350 x 402 | ||
|
Outdoor Unit
|
Sound Pressure | dB(A) | 75 | |
| Outline Dimension (W × D × H) | mm | 940 x 460 x 1615 | ||
| Number of Fans | QTY | 2 | ||
| Net Weight | kg | 190 | ||
|
Refrigerant R410A
|
Pre-Charge Length | m | 7.50 | |
| Additional Charge | g/m | 54 | ||
|
Pipe
|
Outer Diameter
|
Liquid Pipe | mm (Inch) | Ø9.53 (3/8) |
| Gas Pipe | mm (Inch) | Ø22.20 (7/8) | ||
|
Max Distance
|
Height | m | 30 | |
| Length | m | 70 | ||
|
Ambient Temperature Operating Range
|
Cooling | °C | -7 ~ 48 | |
| Heating | °C | -15 ~ 24 | ||
Indoor unit
- Gold fin
Protective coating on the indoor heat exchanger coil for greater durability. - Efficient and quiet
Inverter technology, optional motion sensor and installer settings tailoring airflow, all ensuring maximum efficiency and the quietest operation. - Easy and flexible installation
Compact and adaptable room positioning allows for flexible installation choices. Indoor unit is splittable 12, 14 & 16kW. - Low profile design
Visually appealing, discreet and low profile unit to deliver conditioned air via ducting and suitable ceiling or wall grilles..
Outdoor unit
- Black fin
The highest-rated and most corrosion resistant protective coating, enhancing longevity against the harsh Australian elements. - Flexible outdoor placement
Long pipe runs of up to 75m allows flexibility in placement of an outdoor unit. - DRED as standard
Demand response enabled device capability is standard.
Description
20.4 kW Cooling
22.5 kW Heating
Efficient and quiet | Power saving | R410A
Is a Braemar ducted system energy efficient?
Yes. Braemar systems use advanced inverter technology, zoning capabilities, and motion sensor options to optimise energy use. They also meet the latest Zoned Energy Rating Label (ZERL) standards, making them highly efficient for Australian homes.
What makes Braemar ducted systems quiet?
These systems are designed with inverter compressors and adjustable airflow settings that reduce operational noise. The indoor unit is also installed in the ceiling or out of sight, further minimising sound within living spaces.
What is the benefit of the gold fin coating on the indoor unit?
The gold fin coating protects the heat exchanger from corrosion, moisture, and dust buildup. This improves durability, maintains efficiency, and extends the lifespan of the system.
Are Braemar ducted systems suitable for Australian conditions?
Yes. The outdoor unit features a corrosion-resistant black fin coating, making it ideal for harsh Australian climates, including coastal and high-humidity areas.
