Braemar KDHA160D1S 16.0kW High Static Ducted system Air Conditioner 1 Phase

SKU: KCHA160D1B | KDHA160D1S | XE7C-24/HC

Braemar KDHA160D1S 16.0kW High Static Ducted system Air Conditioner 1 Phase

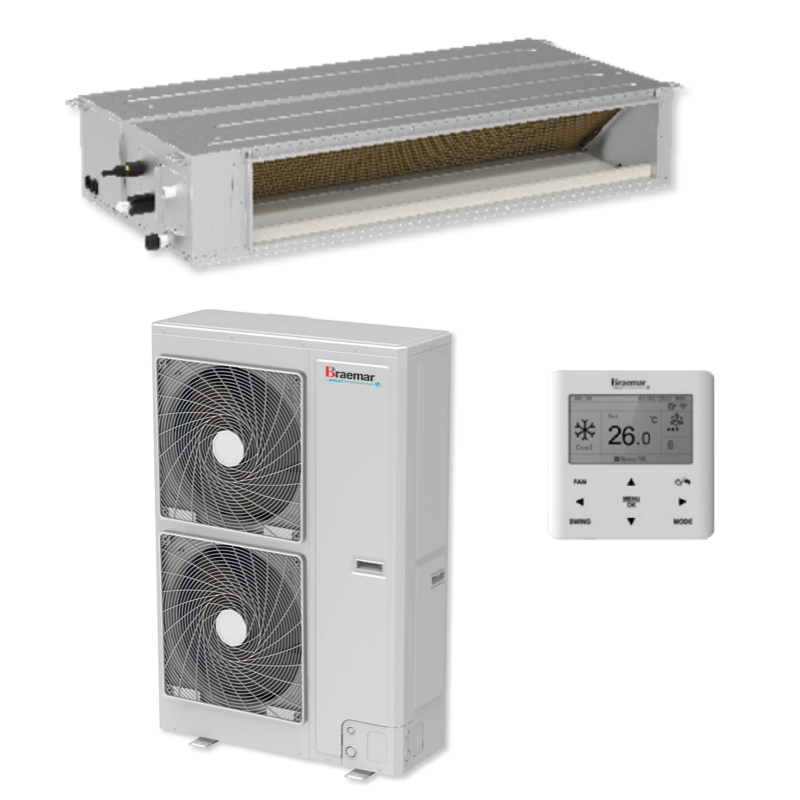

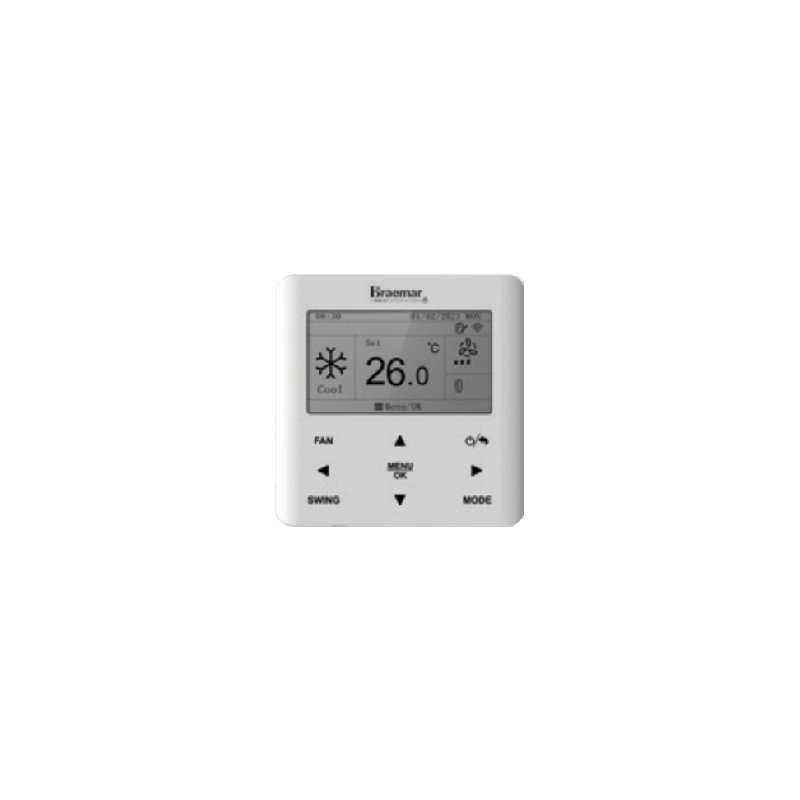

Includes Indoor KDHA160D1S | Outdoor KCHA160D1B | Wall Controller with wifi XE7C-24/HC
Efficient and quiet | Power saving | Gold Fin Protection (Indoor) | Black Fin Protection (Outdoor)
Optional Zone Controller LE60-13/GH-KIT-B 4 Zone KIT Complete Package.

5 Year Comprehensive Warranty
DRED Ready (RJ45 connection)

Price range: $4,309.00 through $5,059.00

Controller

Clear

Insulated Copper Pair Coil

Quantity

Or own it from $165.73 weekly for 6 months*

Or pay in slices, no interest ever

9.5 x 15.88mm (3/8 x 5/8)> Braemar Air Conditioning> Braemar Inverter Ducted Systems Air Conditioners

Model				Outdoor	KCHA160D1B
				Indoor	KDHA160D1S
Cooling Capacity				kW	16.0
Cooling Capacity Range (Min ~ Max)				kW	4.8 ~ 18.0
Heating Capacity				kW	18.0
Heating Capacity Range (Min ~ Max)				kW	5.4 ~ 20.0
ZERL. Star Rating (Hot / Average / Cold)		Cooling		–	3.5 / 3.0 / 3.5
		Heating		–	3.5 / 2.5 / 2.0
AEER				W/W	3.31
ACOP				W/W	3.84
Electrical Data	Power Supply			V / Hz / Ph	230 / 50 / 1
	Power Input (Nominal)		Cooling	kW	4.80
			Heating	kW	4.65
	Maximum Current Input			A	32.0
	Minimum Circuit Breaker Outdoor			A	40
Indoor Unit	Airflow (Max)			l/s (m3/h)	972 (3500)
	ESP Nominal Range			Pa	0 ~ 200
	Sound Pressure Level (Max)			dB(A)	50
	Outline Dimension (W × D × H)			mm	1350 x 720 x 360
	Net Weight			kg	60
Supply Air Outlet		Height		mm	190
		Width		mm	850
Return Air Inlet		Height		mm	326
		Width		mm	1170
Outdoor Unit	Sound Pressure Level (Max)			dB(A)	60
	Outline Dimension (W × D × H)			mm	900 × 340 × 1260
	Net Weight			kg	97
	Number of Fans			QTY	2
Refrigerant R32		Pre-Charge Length		m	15
		Additional Charge		g/m	35
Pipe	Outer Diameter		Liquid Pipe	mm (Inch)	Ø9.52 (3/8)
			Gas Pipe	mm (Inch)	Ø15.88 (5/8)
	Max Distance		Height	m	30
			Length	m	75
Ambient Temperature Operating Range		Cooling		°C	-15 ~ 52
		Heating		°C	-15 ~ 24

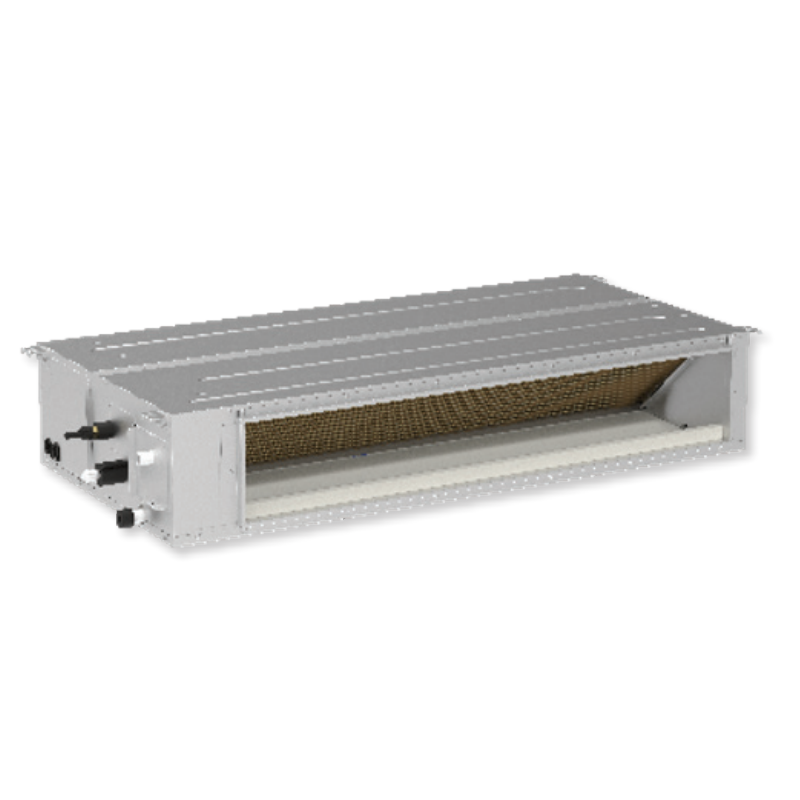

Indoor unit

Gold fin
Protective coating on the indoor heat exchanger coil for greater durability.
ZERL
Rated to the latest zoned energy rating label standard.
Efficient and quiet
Inverter technology, optional motion sensor and installer settings tailoring airflow, all ensuring maximum efficiency and the quietest operation.
Easy and flexible installation
Compact and adaptable room positioning allows for flexible installation choices. Indoor unit is splittable 12, 14 & 16kW.
Low profile design
Visually appealing, discreet and low profile unit to deliver conditioned air via ducting and suitable ceiling or wall grilles.
Condensate pump as standard
All single phase ducted inverters have the option of utilising the built in drain pump or the gravity drain. The condensate pump has a 1m lift, making it easier to get the condensate away from the indoor unit and to the nearest drain point. This provides flexible installation options.
Home automation system adaptable
Built in Modbus adapter for third party controller compatibility. Remote on/off control available for applications that require connection to a Building Management System (BMS), or require a room card.

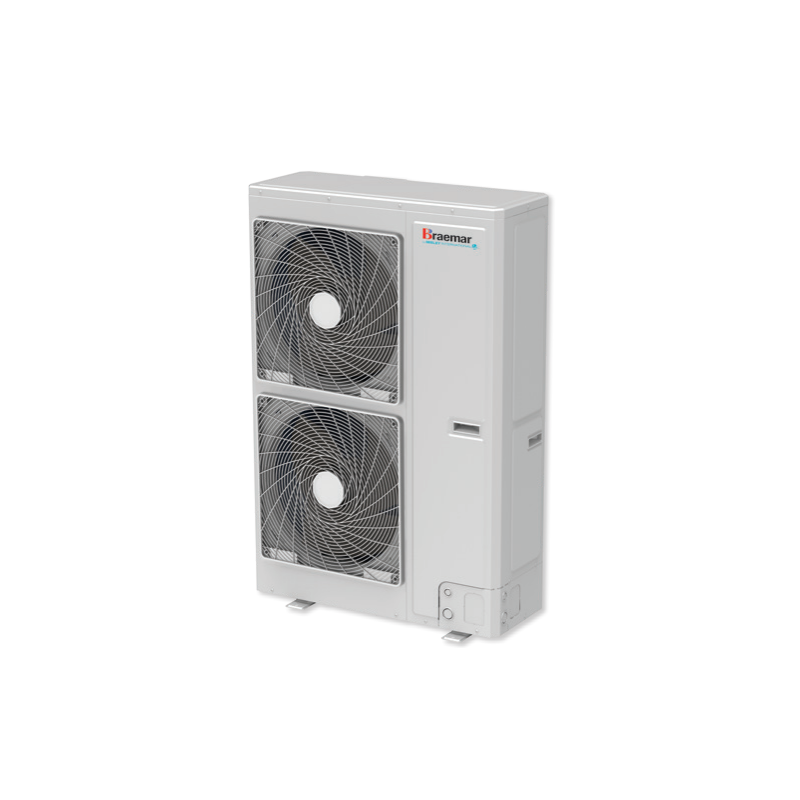

Outdoor unit

Black fin
The highest-rated and most corrosion resistant protective coating, enhancing longevity against the harsh Australian elements.
Flexible outdoor placement
Long pipe runs of up to 75m allows flexibility in placement of an outdoor unit.
Slim design
Allows more flexibility in placing an outdoor unit. Easily fits into tighter spaces.
DRED as standard
Demand response enabled device capability is standard.
R32 refrigerant
68% lower Global Warming Potential and more energy efficient than R410A.

Braemar KDHA160D1S 16.0kW High Static Ducted system Air Conditioner 1 Phase outdoor – Brochure

Braemar KDHA160D1S 16.0kW High Static Ducted system Air Conditioner 1 Phase

Remove

$59.00

Braemar LE60-13/C1-B RF Sensor

Remove

$749.00

Braemar LE60-13/GH-KIT-B 4 Zone KIT Complete Package

Remove

$5,117.00 Bundle Price for Selected items

Description

16.0 kW Cooling
18.0 kW Heating

Quiet | Power saving | Inverter

Is a Braemar ducted system energy efficient?

Yes. Braemar systems use advanced inverter technology, zoning capabilities, and motion sensor options to optimise energy use. They also meet the latest Zoned Energy Rating Label (ZERL) standards, making them highly efficient for Australian homes.

What makes Braemar ducted systems quiet?

These systems are designed with inverter compressors and adjustable airflow settings that reduce operational noise. The indoor unit is also installed in the ceiling or out of sight, further minimising sound within living spaces.

What is the benefit of the gold fin coating on the indoor unit?

The gold fin coating protects the heat exchanger from corrosion, moisture, and dust buildup. This improves durability, maintains efficiency, and extends the lifespan of the system.

Are Braemar ducted systems suitable for Australian conditions?

Yes. The outdoor unit features a corrosion-resistant black fin coating, making it ideal for harsh Australian climates, including coastal and high-humidity areas.
