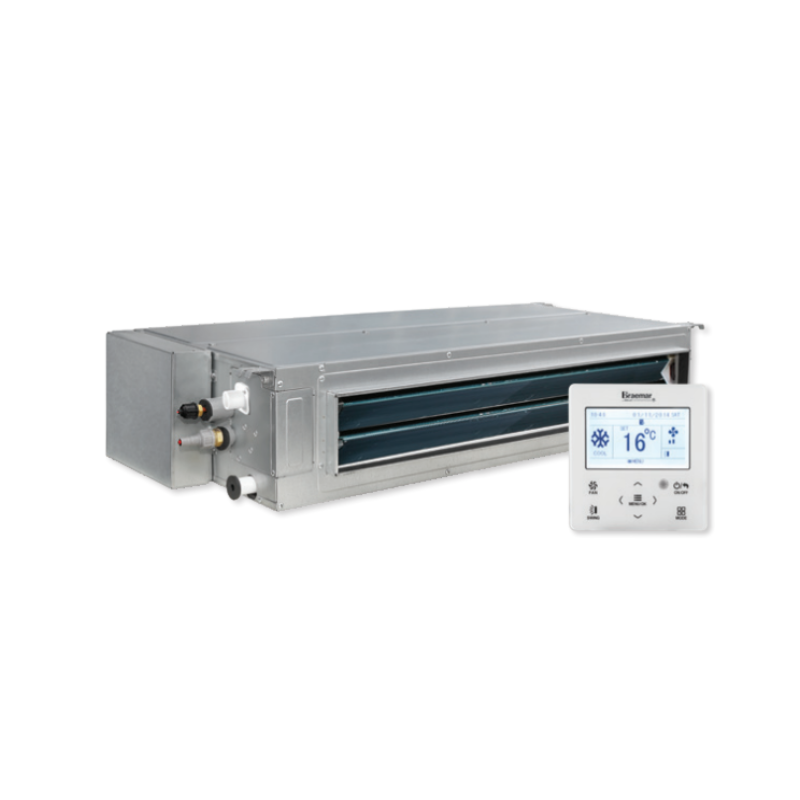

Braemar NDHV35D1S 3.5kW Bulkhead Air Conditioner Indoor Only
Braemar NDHV35D1S 3.5kW Bulkhead Air Conditioner Indoor Only
3.5 kW Cooling | 4.0 kW Heating
200mm Height Discreet installation | Quiet operation
- 5 Year Comprehensive Warranty
- Wired Controller Included with Indoor Unit
- Part of a Multi System
| Model | Indoor | NDHV35D1S | ||
| Cooling Capacity | kW | 3.5 | ||
| Sensible Cooling Capacity | kW | 2.54 | ||
| Heating Capacity | kW | 4.0 | ||
| Dehumidifying Volume | l/hr | 1.4 | ||
|
Indoor Unit
|
Power Supply | V / Hz / Ph | 230 / 50 / 1 | |
| Airflow (Min ~ Max) | l/s | 144 ~ 194 | ||
| ESP Nominal (Min ~ Max) | Pa | 25 (0 ~ 60) | ||
| Sound Pressure Level (Min ~ Max) | dB (A) | 34 ~ 41 | ||
| Outline Dimension (W × D × H) | mm | 710 x 450 x 200 | ||
| Net Weight | kg | 19.0 | ||
|
Supply Air Outlet
|
Height | mm | 122 | |
| Width | mm | 585 | ||
|
Return Air Inlet
|
Height | mm | 200 | |
| Width | mm | 710 | ||
|
Pipe
|
Outer Diameter
|
Liquid Pipe | mm (Inch) | Ø6.35 (1/4) |
| Gas Pipe | mm (Inch) | Ø9.52 (3/8) | ||
The bulkhead range allows for a more discreet installation. The indoor unit is designed to fit seamlessly into the ceiling, with only the suction and discharge grilles visible in your living space. Available in 4 sizes.
Multi split system air conditioning enables the connection of up to five indoor units to a single outdoor unit. A range of indoor units are available to suit your home plus you can save on running costs by heating or cooling rooms as required with different temperature settings on each room.
Description
3.5 kW Cooling
4.0 kW Heating
200mm Height | Quiet operation
