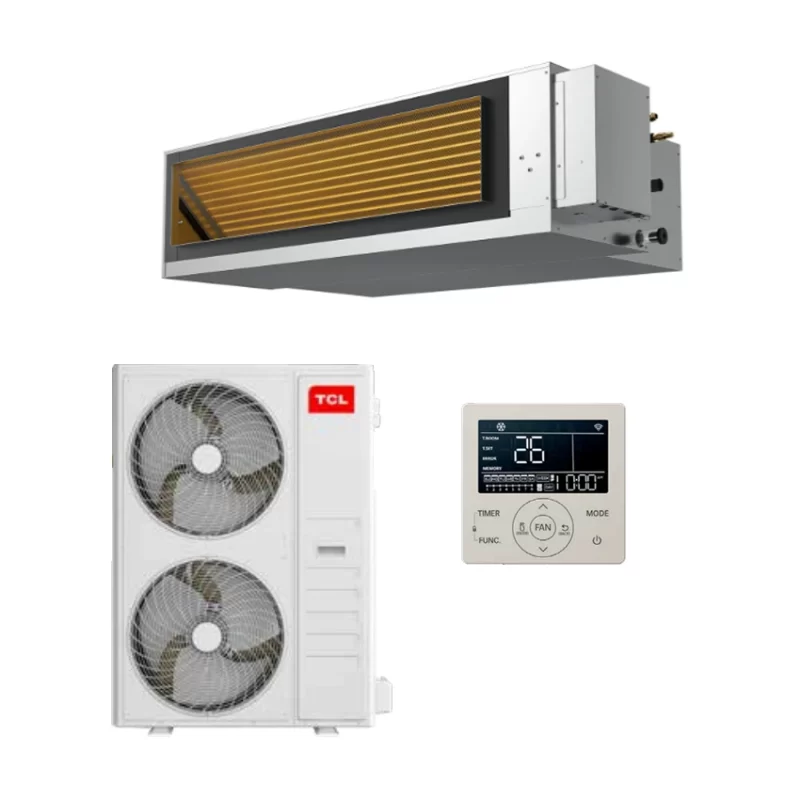

TCL TCD140D1HWH-DV 14.0kW Reverse Cycle Split High Static Ducted Air Conditioner

TCL TCD140D1HWH-DV 14.0kW Reverse Cycle Split High Static Ducted Air Conditioner

SKU: TCD140D1HWH-DV ( Indoor and Outdoor )

14.0kW Cooling |  16.5kW Heating
TCL TCD140D1HWH-DV 14.0kW Reverse Cycle Split High Static Ducted Air Conditioner
Indoor TCD140D1HWH-DVI Outdoor TCD140D1HWH-DVO Wired Controller

  • 200PA High Static Pressure
  • Built-in Condensate Pump | Long Pipe Run
  • 48°C Self-cleaning
  • Eco-friendly

7 Years Manufacturer’s Warranty


$3,480.00

Or own it from $133.85 weekly for 6 months* zip money
Or pay in slices, no interest ever
> >
Capacity R32 14KW
Model TCD140D1HWH-DV
Indoor Unit TCD140D1HWH-DVI
Outdoor Unit TCD140D1HWH-DVO
Type Heat pump
Control type Wired controller standard with 15m cable
Power supply
 Indoor Unit 1 phase, 220-240 V, 50 Hz
Outdoor Unit 1 phase, 220-240 V, 50 Hz
Rated Capacity
 Cool(kw) 14
Heat(kw) 16.5
Capacity Range
 Cool(kw) 4.1-16
Heat(kw) 6.0-17.3
Power input (Rated)
 Cool(kw) 3.85
Heat(kw) 4.2
EER Cool(kw/kw) 3.64
COP Heat(kw/kw) 3.96
AEER 3.61
ACOP 3.93
TCSPF(Residential) Hot/Average/Cold 5.23/4.85/5.05
HSPF(Residential) Hot/Average/Cold 4.44/4.03/3.6
Indoor unit
Dimensions H × W × D mm 380×1510×945
Packing dimensions H × W × D mm 455×1620×1010
Supply air opening flange H × W mm 245×1152
Return air opening H × W mm 2×400(Oval)
Indoor net weight
 kg 66
Gross weight kg 77
Airflow Rate(H/M/L)
 L/S 1120/950/780
Sound pressure level@1.5m dB(A) 48
External Static Pressure(Rated ) Pa 50
External Static Pressure(Range ) Pa 0-200
Outdoor Unit
Dimensions H × W × D mm 1330 × 950 × 340
Packing dimensions H × W × D mm 1465 ×1080 × 430
Outdoor net weight
 kg 101
Gross weight kg 107.5
Compressor Type Rotary
Sound pressure level
 Cooling / Heating dB(A) 58/59
Night quiet mode dB(A) 55
Sound power level
 dB(A) 74
Piping connection
 Liquid mm ø9.52/3/8”
Gas mm ø15.88/5/8”
Refrigerant control
 EEV
Ref. piping
 Max length m 75
Max height difference m 30
Refrigerant
 Type R32
Pre-charge pipe length m 20
Extra charge g/m 30
Cooling temperature °C 16-50
Heating temperature °C -15~24
Power supply side Outdoor unit
  •  Energy savings up to 75% compared to traditional systems
  •  Eco-friendly R290 refrigerant & DRED capable
  •  Wi-Fi control via the TCL Home App
  • AI and Holiday Modes for smarter energy use
  • Rapid heating from -7°C to 45°C ambient range
  • STC-2025 compliant
  • Built for long-term durability with anti-corrosion magnesium rod and enamel tank

TCL TCD125D1HWH-DV 12.5kW Reverse Cycle Split High Static Ducted Air Conditioner – Brochure

TCL TCD140D1HWH-DV 14.0kW Reverse Cycle Split High Static Ducted Air Conditioner
$3,480.00

TCL TCD140D1HWH-DV 14.0kW Reverse Cycle Split High Static Ducted Air Conditioner
INSULATED PAIRED COPPER PIPE 9.5 x 15.88mm (3/8 x 5/8) 20 Meters length
$429.00

INSULATED PAIRED COPPER PIPE 9.5mm x 15.88mm (3/8 x 5/8) 20 Meters length – Shipping Included
$3,909.00 Bundle Price for Selected items

Description

14.0kW Cooling
16.5kW Heating

Eco Friendly | WIFI Smart Control
