TCL TCD71D1HWH-DV 7.2kW Reverse Cycle Split High Static Ducted Air Conditioner

SKU: TCD71D1HWH-DV ( Indoor and Outdoor )

7.1kW Cooling | 7.5kW Heating

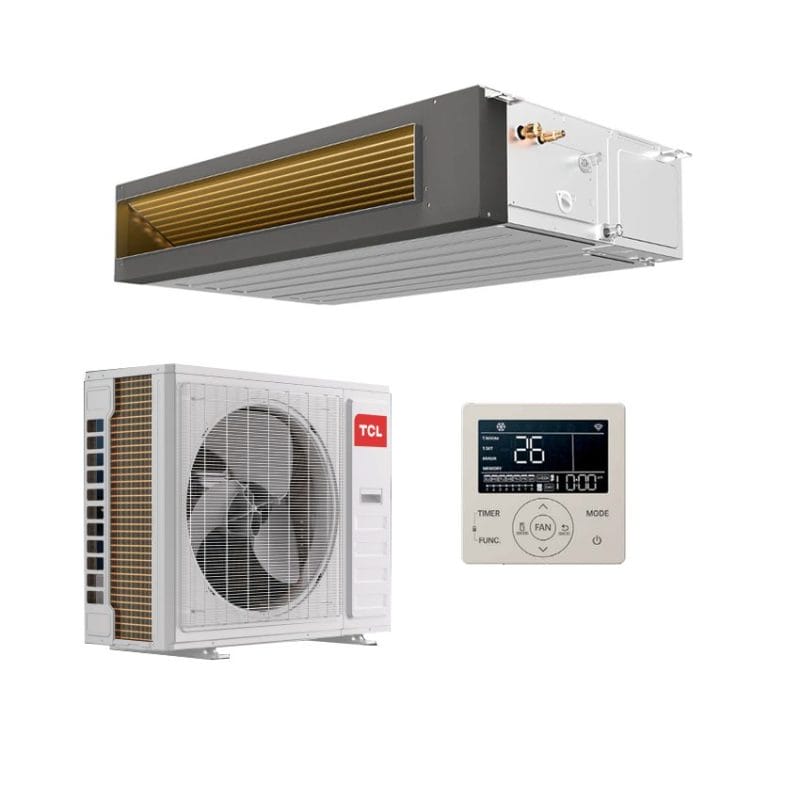

TCL TCD71D1HWH-DV 7.2kW Reverse Cycle Split High Static Ducted Air Conditioner
Indoor TCD71D1HWH-DVI Outdoor TCD71D1HWH-DVO Wired Controller

200PA High Static Pressure
Built-in Condensate Pump | Long Pipe Run
48°C Self-cleaning
Eco-friendly

7 Years Manufacturer’s Warranty

$2,060.00

Or own it from $79.23 weekly for 6 months*

Or pay in slices, no interest ever

9.5 x 15.88mm (3/8 x 5/8)> TCL Air Conditioning> TCL Ducted Air Conditioner Systems

Capacity			R32 7.1KW
Model			TCD71D1HWH-DV
Indoor Unit			TCD71D1HWH-DVI
Outdoor Unit			TCD71D1HWH-DVO
Type			Heat pump
Control type			Wired controller standard with 15m cable
Power supply	Indoor Unit		1 phase, 220-240 V, 50 Hz
Power supply	Outdoor Unit		1 phase, 220-240 V, 50 Hz
Rated Capacity		Cool(kw)	7.1
Rated Capacity		Heat(kw)	7.5
Capacity Range		Cool(kw)	3.1~11
Capacity Range		Heat(kw)	3.3~12
Power input (Rated)		Cool(kw)	1.9
Power input (Rated)		Heat(kw)	1.73
EER		Cool(kw/kw)	3.78
COP		Heat(kw/kw)	4.38
AEER			3.73
ACOP			4.32
TCSPF(Residential)		Hot/Average/Cold	5.4/5.01/5.2
HSPF(Residential)		Hot/Average/Cold	4.71/4.32/3.95
Indoor unit
Dimensions	H × W × D	mm	245×1200×700
Packing dimensions	H × W × D	mm	310×1380×830
Supply air opening flange	H × W	mm	149×1022
Return air opening	H × W	mm	215×1091
Indoor net weight		kg	37
Gross weight		kg	42
Airflow Rate(H/M/L)		L/S	560/435/275
Sound pressure level@1.5m		dB(A)	44
External Static Pressure(Rated )		Pa	25
External Static Pressure(Range )		Pa	0-200
Outdoor Unit
Dimensions	H × W × D	mm	910×804×378
Packing dimensions	H × W × D	mm	1022x955x480
Outdoor net weight		kg	53
Gross weight		kg	57
Compressor	Type		Rotary
Sound pressure level	Cooling / Heating	dB(A)	56/57
Sound pressure level	Night quiet mode	dB(A)	None
Sound power level		dB(A)	67
Piping connection	Liquid	mm	ø9.52/3/8”
Piping connection	Gas	mm	ø15.88/5/8”
Refrigerant control			EEV
Ref. piping	Max length	m	50
Ref. piping	Max height difference	m	25
Refrigerant	Type		R32
	Pre-charge pipe length	m	20
	Extra charge	g/m	30
Cooling temperature		°C	16-50
Heating temperature		°C	-15~24
Power supply side			Outdoor unit

 Energy savings up to 75% compared to traditional systems
 Eco-friendly R290 refrigerant & DRED capable
 Wi-Fi control via the TCL Home App
AI and Holiday Modes for smarter energy use
Rapid heating from -7°C to 45°C ambient range
STC-2025 compliant
Built for long-term durability with anti-corrosion magnesium rod and enamel tank

TCL TCD71D1HWH-DV 7.2kW Reverse Cycle Split Ducted Air Conditioner – Brochure
